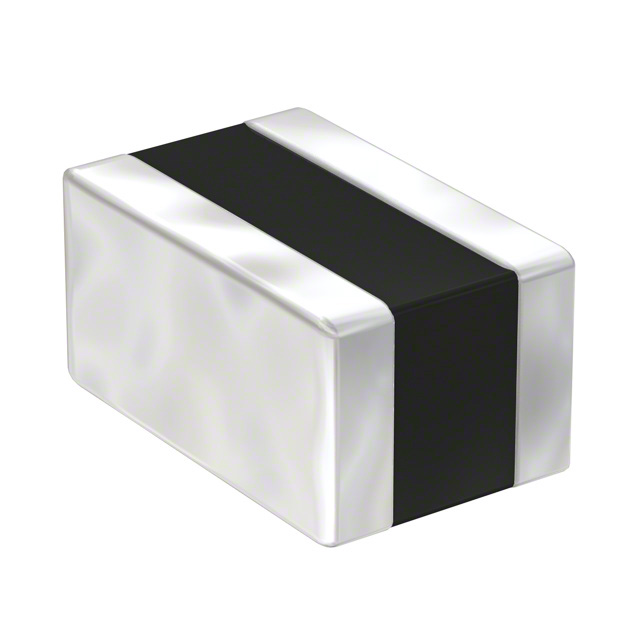

EWK212BJ106MD-T
TAIYO YUDEN
CAP CER 10UF 16V X5R 0508
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EWK212BJ106MD-T
TAIYO YUDEN
CAP CER 10UF 16V X5R 0508
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EWK212BJ106MD-T |
|---|---|
| Applications | Bypass, Decoupling |
| Capacitance | 10 µF |
| Features | Low ESL (Reverse Geometry) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0508 |
| Package / Case | 1220 Metric |
| Size / Dimension [x] | 1.25 mm |
| Size / Dimension [x] | 0.049 in |
| Size / Dimension [y] | 0.079 in |
| Size / Dimension [y] | 2 mm |
| Temperature Coefficient | X5R |
| Thickness (Max) [Max] | 0.95 mm |
| Thickness (Max) [Max] | 0.037 in |
| Tolerance | 20 % |
| Voltage - Rated [custom] | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.29 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.43 | ||
| 10 | $ 0.29 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 4000 | $ 0.11 | ||
| 8000 | $ 0.10 | |||
| 12000 | $ 0.10 | |||
| 28000 | $ 0.10 | |||
| 100000 | $ 0.09 | |||
Description
General part information
EWK212B Series
10 µF ±20% 16V Ceramic Capacitor X5R 0508 (1220 Metric)
