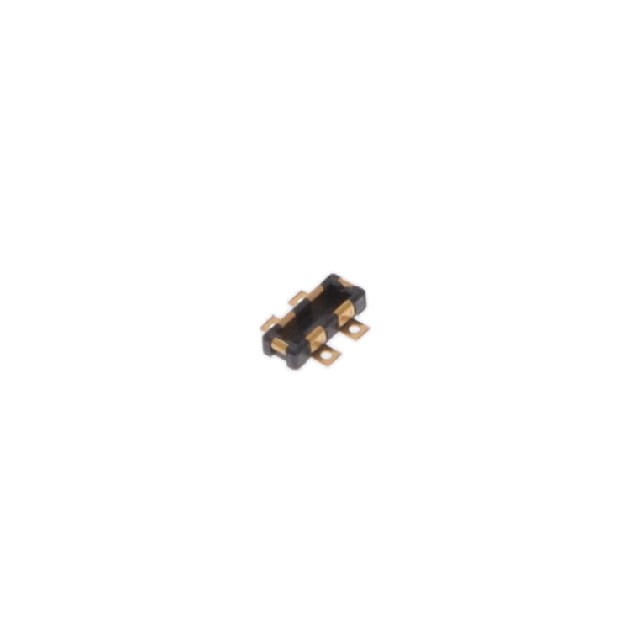

KN14(0.7)-2P/2-V(800)
LTBHirose Electric USA, Inc.
CONN PLUG FPC 0.7MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KN14(0.7)-2P/2-V(800)
LTBHirose Electric USA, Inc.
CONN PLUG FPC 0.7MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KN14(0.7)-2P/2-V(800) |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.97 Áin |
| Contact Finish Thickness | 0.05 Ám |
| Height Above Board | 0.57 mm |
| Height Above Board | 0.022 in |
| Mated Stacking Heights | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.68 | |
| 10 | $ 0.59 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.45 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.35 | |||
| 2500 | $ 0.32 | |||
| Tape & Reel (TR) | 15000 | $ 0.28 | ||
Description
General part information
KN14 Series
4 (2 + 2 Power) Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
