3404.0113.22

Active

SCHURTER Inc.

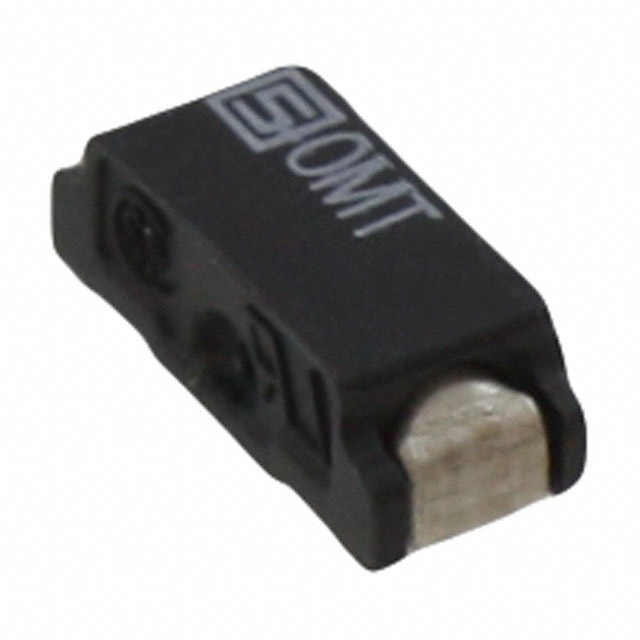

FUSE CHIP SLOW BLOW ACTING 0.75A 125V SMD SOLDER PAD 7.4 X 3.1 X 2.6MM THERMOPLASTIC T/R CCC/CULUS

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE CHIP SLOW BLOW ACTING 0.75A 125V SMD SOLDER PAD 7.4 X 3.1 X 2.6MM THERMOPLASTIC T/R CCC/CULUS

Technical Specifications

Parameters and characteristics for this part

Specification	3404.0113.22

Approval Agency	cULus
Breaking Capacity @ Rated Voltage	100 A
Current Rating (Amps)	750 mA
Fuse Type	Board Mount
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	2-SMD, J-Lead
Response Time	Slow Blow
Size / Dimension [x]	7.4 mm
Size / Dimension [x]	0.291 "
Size / Dimension [y]	0.122 in
Size / Dimension [y]	3.1 mm
Size / Dimension [z]	2.6 mm
Size / Dimension [z]	0.102 "
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

Part	Approval Agency	Current Rating (Amps)	Response Time	Breaking Capacity @ Rated Voltage	Fuse Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage Rating - DC	Voltage Rating - AC	Mounting Type
SCHURTER Inc. 3404.0113.22	cULus	750 mA	Slow Blow	100 A	Board Mount	85 °C	-40 °C	2-SMD J-Lead	0.122 in	7.4 mm	2.6 mm	3.1 mm	0.291 "	0.102 "	125 VDC	125 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

750 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
