EVB_RT8555WSC

Active

Richtek USA Inc.

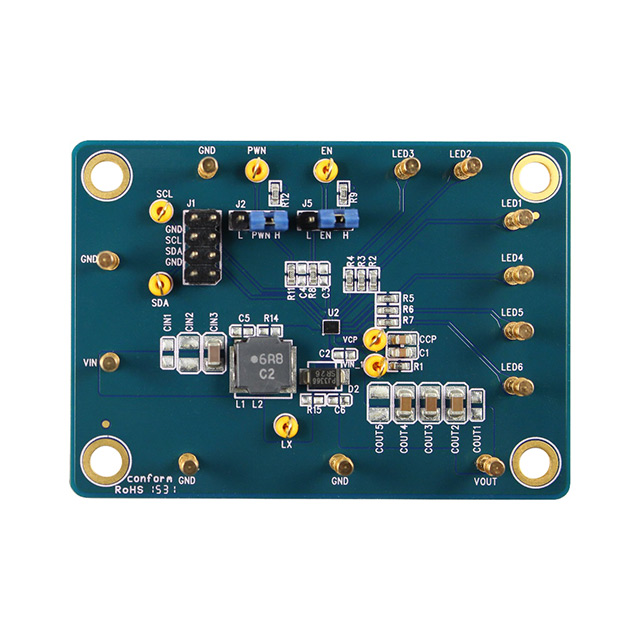

EVAL MODULE FOR RT8555WSC

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT8555WSC

Technical Specifications

Parameters and characteristics for this part

Specification	EVB_RT8555WSC

Current - Output / Channel [custom]	20 mA
Features	Dimmable
Outputs and Type	6
Outputs and Type	Non-Isolated
Supplied Contents	Board(s)
Utilized IC / Part	RT8555
Voltage - Input [Max]	24 V
Voltage - Input [Min]	2.7 V
Voltage - Output	36 V

Part	Applications	Number of Outputs	Current - Output / Channel	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Voltage - Output	Frequency [Max]	Frequency [Min]	Dimming	Voltage - Supply (Max) [Max]	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Package / Case	Utilized IC / Part	Current - Output / Channel [custom]	Outputs and Type	Outputs and Type	Features	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]
Richtek USA Inc. RT8555BWSC	Backlight	6	35 mA	2.05	20-WLCSP	1.65	36 V	2 MHz	300 kHz	Analog PWM	24 V	Step-Up (Boost)	85 °C	-40 °C	DC DC Regulator	Surface Mount	20-UFBGA WLCSP
Richtek USA Inc. RT8555WSC	Backlight	6	35 mA	2.05	20-WLCSP	1.65	36 V	2 MHz	300 kHz	Analog PWM	24 V	Step-Up (Boost)	85 °C	-40 °C	DC DC Regulator	Surface Mount	20-UFBGA WLCSP
Richtek USA Inc. EVB_RT8555WSC							36 V											RT8555	20 mA	6	Non-Isolated	Dimmable	Board(s)	2.7 V	24 V
Richtek USA Inc. RT8555AWSC	Backlight	6	35 mA	2.05	20-WLCSP	1.65	36 V	2 MHz	300 kHz	Analog PWM	24 V	Step-Up (Boost)	85 °C	-40 °C	DC DC Regulator	Surface Mount	20-UFBGA WLCSP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.90

General part information

RT8555 6, Non-Isolated Outputs LED Driver Evaluation Board
