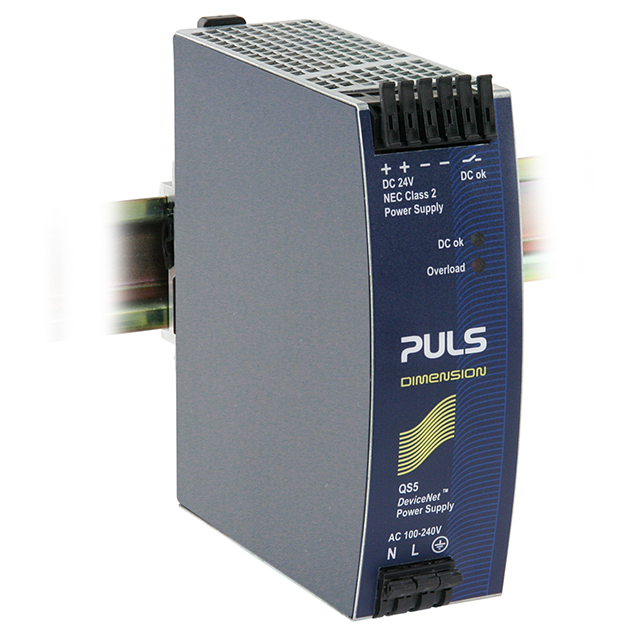

QS5.DNET

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 91W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 91W

Technical Specifications

Parameters and characteristics for this part

Specification	QS5.DNET

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Hazardous Locations
Approval Agency	IEC, CSA, UL, NEC, SEMI, EAC, ABS, DNV GL
Current - Output (Max) [Max]	3.8 A
Efficiency	92 %
Features	PFC, Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	91 W
Size / Dimension [x]	117 mm
Size / Dimension [x]	4.61 "
Size / Dimension [y]	1.57 "
Size / Dimension [y]	40 mm
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Standard Number	F47, Class I Div 2, 60950-1, 508, Class 2, 61010-2-201
Voltage - Isolation	500 V
Voltage - Output 1	24 V

Part	DC Voltage - Input (Max) [Max]	Voltage - Output 1	Standard Number	DC Voltage - Input (Min) [Min]	Voltage - Isolation	Number of Outputs	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Efficiency	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Input Type	Features	Power (Watts)
PULS, LP QS5.241-A1	360 V	24 V	508 60950-1 61010-2-201 Class I Div 2 F47	88 V	500 V	1	ABS ATEX CSA DNV GL EAC IEC IECEx SEMI UL	1.57 "	124 mm	117 mm	4.61 "	4.88 "	40 mm	85 VAC	264 VAC	92.7 %	5 A	-10 °C	70 °C	Hazardous Locations ITE (Commercial)	AC	Adjustable Output Load Sharing PFC
PULS, LP QS5.DNET		24 V	508 60950-1 61010-2-201 Class 2 Class I Div 2 F47		500 V	1	ABS CSA DNV GL EAC IEC NEC SEMI UL	1.57 "	124 mm	117 mm	4.61 "	4.88 "	40 mm	85 VAC	264 VAC	92 %	3.8 A	-10 °C	70 °C	Hazardous Locations ITE (Commercial)	AC	Adjustable Output Load Sharing PFC	91 W
PULS, LP QS5.241		24 V	508 60950-1 61010-2-201 Class I Div 2 F47		500 V	1	ABS CSA DNV GL EAC IEC SEMI UL	1.57 "	124 mm	117 mm	4.61 "	4.88 "	40 mm	85 VAC	264 VAC	92.7 %	5 A	-10 °C	70 °C	Hazardous Locations ITE (Commercial)	AC	Adjustable Output Load Sharing PFC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 391.50

General part information

AC/DC DIN RAIL SUPPLY 24V 91W

Technical documentation and resources

No documents available
