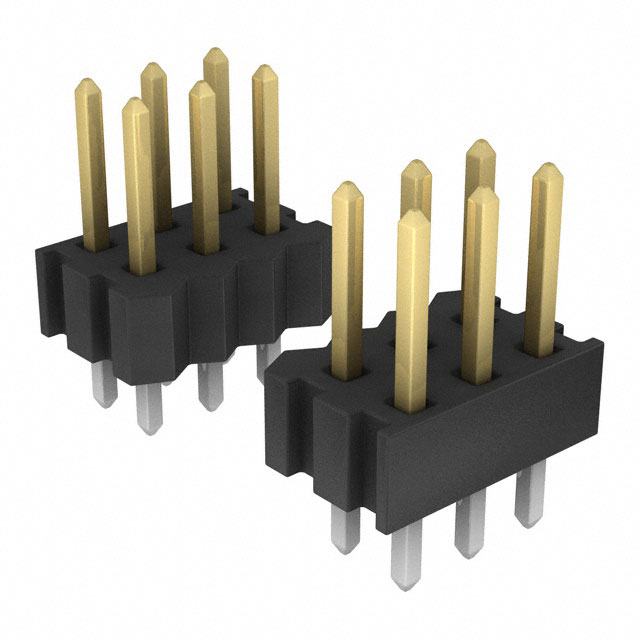

103817-6
ActiveTE Connectivity Raychem Cable Protection
24 MODII HDR 3RST UNSHRD .100 ROHS COMPLIANT: NO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103817-6
ActiveTE Connectivity Raychem Cable Protection
24 MODII HDR 3RST UNSHRD .100 ROHS COMPLIANT: NO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 103817-6 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 3.05 mm |
| Insulation Height | 0.12 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Overall Contact Length | 11.94 mm |
| Overall Contact Length | 0.47 " |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
103817 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Length - Mating [x] | Contact Length - Mating | Termination | Style | Mounting Type | Number of Positions Loaded | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Insulation Height | Insulation Height | Material Flammability Rating | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Number of Positions | Contact Length - Post [x] | Contact Length - Post [x] | Overall Contact Length | Overall Contact Length | Connector Type | Contact Shape | Current Rating (Amps) | Number of Rows | Contact Type | Fastening Type | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Thermoplastic | 0.23 in | 5.84 mm | Solder | Board to Board Cable | Through Hole | All | Gold | 30 Áin | 0.76 Ám | Phosphor Bronze | 3.05 mm | 0.12 in | UL94 V-0 | Black | 2.54 µm | 100 µin | Tin | 60 | 0.12 in | 3.05 mm | 11.94 mm | 0.47 " | Header | Square | 3 A | 3 | Male Pin | Push-Pull | Unshrouded |
TE Connectivity Raychem Cable Protection | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Thermoplastic | 0.23 in | 5.84 mm | Solder | Board to Board Cable | Through Hole | All | Gold | 30 Áin | 0.76 Ám | Phosphor Bronze | 3.05 mm | 0.12 in | UL94 V-0 | Black | 2.54 µm | 100 µin | Tin-Lead | 24 | 0.12 in | 3.05 mm | 11.94 mm | 0.47 " | Header | Square | 3 A | 3 | Male Pin | Push-Pull | Unshrouded |
TE Connectivity Raychem Cable Protection | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Thermoplastic | 0.23 in | 5.84 mm | Solder | Board to Board Cable | Through Hole | All | Gold | 30 Áin | 0.76 Ám | Phosphor Bronze | 3.05 mm | 0.12 in | UL94 V-0 | Black | 2.54 µm | 100 µin | Tin-Lead | 21 | 0.12 in | 3.05 mm | 11.94 mm | 0.47 " | Header | Square | 3 A | 3 | Male Pin | Push-Pull | Unshrouded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
103817 Series
Connector Header Through Hole 24 position 0.100" (2.54mm)
