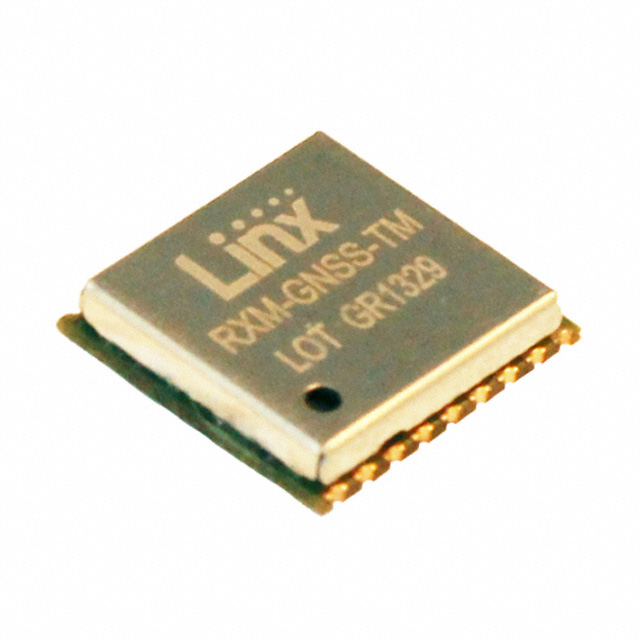

RXM-GNSS-TM-T

Active

TE Connectivity Linx

RF RX GNSS 1.575/1.602GHZ MODULE

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF RX GNSS 1.575/1.602GHZ MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	RXM-GNSS-TM-T

Antenna Connector	Not Included
Applications	Fleet Management, Navigation, Location, Tracking
Data Interface	UART
Frequency	1.602 GHz, 1.575 GHz
Modulation or Protocol	GPS, GNSS
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	18-SMD Module
Supplier Device Package	Module
Voltage - Supply [Max]	4.3 V
Voltage - Supply [Min]	3 V

Part	Supplier Device Package	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Antenna Connector	Data Interface	Modulation or Protocol	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Current - Receiving
TE Connectivity Linx RXM-GNSS-TM-T	Module	1.575 GHz 1.602 GHz	4.3 V	3 V	Fleet Management Location Navigation Tracking	Not Included	UART	GNSS GPS	Surface Mount	18-SMD Module	85 °C	-40 °C
TE Connectivity Linx RXM-GNSS-GM-T	Module	1.575 GHz 1.602 GHz	4.3 V	3 V	Fleet Management Location Navigation Tracking	PCB Surface Mount	UART	GNSS GPS	Surface Mount	20-SMD Module	85 °C	-40 °C	-161 dB	16 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TM RF Receiver GNSS, GPS 1.575GHz, 1.602GHz -164dBm Not Included Module
