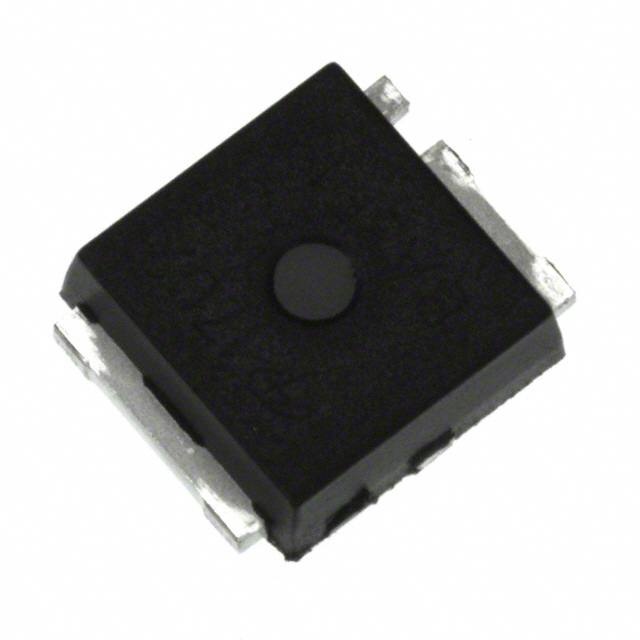

AOL1412

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 30V 17A/70A ULTRASO8

Deep-Dive with AI

DocumentsDatasheet AOS Green Policy

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AOL1412

Current - Continuous Drain (Id) @ 25°C	70 A, 17 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Feature	Schottky Diode (Body)
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	115 nC
Input Capacitance (Ciss) (Max) @ Vds	7716 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	3-PowerSMD, Flat Leads
Power Dissipation (Max)	2.1 W, 36 W
Supplier Device Package	UltraSO-8™
Technology	MOSFET (Metal Oxide)
Vgs (Max)	12 V
Vgs(th) (Max) @ Id	2.4 V

AOL14 Series

Part	FET Type	Vgs (Max)	Supplier Device Package	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Technology	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Package / Case	Rds On (Max) @ Id, Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	FET Feature
Alpha & Omega Semiconductor Inc. AOL1454	N-Channel	20 V	UltraSO-8™	40 V	1920 pF	-55 °C	175 ░C	Surface Mount	MOSFET (Metal Oxide)	2.1 W 60 W	3 V	3-PowerSMD Flat Leads	9 mOhm	22 nC	12 A 50 A	4.5 V 10 V
Alpha & Omega Semiconductor Inc. AOL1414	N-Channel	12 V	UltraSO-8™	30 V		-55 °C	175 ░C	Surface Mount	MOSFET (Metal Oxide)	2.08 W 100 W	2 V	3-PowerSMD Flat Leads		24 nC	14 A 85 A	4.5 V 10 V	6.5 mOhm
Alpha & Omega Semiconductor Inc. AOL1432	N-Channel	20 V	UltraSO-8™	25 V	1716 pF	-55 °C	175 ░C	Surface Mount	MOSFET (Metal Oxide)	2 W 30 W	3 V	3-PowerSMD Flat Leads	8.5 mOhm		12 A 44 A	4.5 V 10 V		32 nC
Alpha & Omega Semiconductor Inc. AOL1440	N-Channel	30 V	UltraSO-8™	25 V	2400 pF	-55 °C	175 ░C	Surface Mount	MOSFET (Metal Oxide)	2.3 W 75 W	4 V	3-PowerSMD Flat Leads		50 nC	21 A 85 A	10 V 20 V	3.2 mOhm
Alpha & Omega Semiconductor Inc. AOL1412	N-Channel	12 V	UltraSO-8™	30 V	7716 pF	-55 °C	150 °C	Surface Mount	MOSFET (Metal Oxide)	2.1 W 36 W	2.4 V	3-PowerSMD Flat Leads			17 A 70 A	4.5 V 10 V		115 nC	Schottky Diode (Body)
Alpha & Omega Semiconductor Inc. AOL1404G	N-Channel	12 V	UltraSO-8™	20 V	3300 pF	-55 °C	150 °C	Surface Mount	MOSFET (Metal Oxide)	6.2 W 50 W	1.25 V	3-PowerSMD Flat Leads		45 nC	30 A 46 A	2.5 V 4.5 V	4.6 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AOL14 Series

N-Channel 30 V 17A (Ta), 70A (Tc) 2.1W (Ta), 36W (Tc) Surface Mount UltraSO-8™
