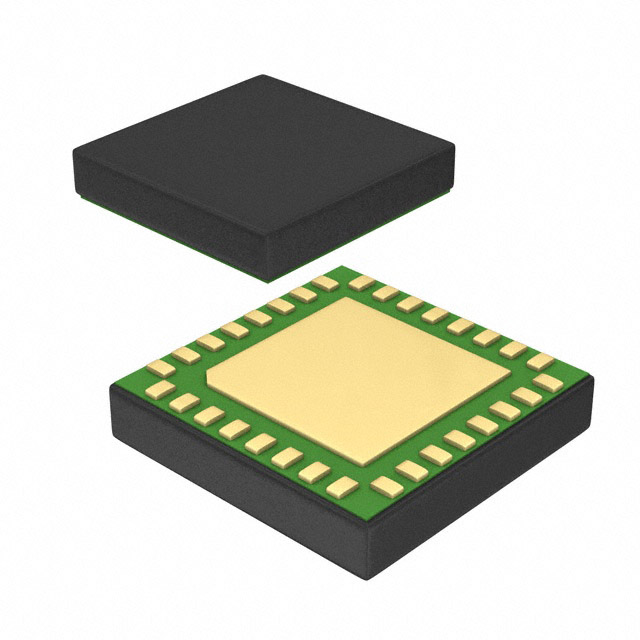

PE42540G-Z
ActivepSemi Corporation
IC RF SWITCH SP4T 8GHZ 32LGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE42540G-Z
ActivepSemi Corporation
IC RF SWITCH SP4T 8GHZ 32LGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE42540G-Z |
|---|---|
| IIP3 | 58 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 1.2 dB |
| Isolation | 31 dB |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 33 dBm |
| Package / Case | 32-TFQFN Exposed Pad |
| Test Frequency | 8 GHz |
| Topology | Absorptive |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.35 | |
| 101 | $ 8.49 | |||
| 1000 | $ 7.02 | |||
| Digi-Reel® | 1 | $ 9.35 | ||
| 101 | $ 8.49 | |||
| 1000 | $ 7.02 | |||
| Tape & Reel (TR) | 3000 | $ 7.02 | ||
Description
General part information
PE42540 Series
RF Switch IC SP4T 8 GHz 50Ohm 32-LGA (5x5)
