CSE-SMBM-152-SMBM

Active

TE Connectivity Linx

CBL ASSY SMB PLUG TO PLUG 6"

Search across all available documentation for this part.

Active

TE Connectivity Linx

CBL ASSY SMB PLUG TO PLUG 6"

Technical Specifications

Parameters and characteristics for this part

Part	1st Contact Gender	Cable Type	1st Connector	Operating Temperature	1st Connector Mounting Type	Overall Impedance	Cable Impedance	2nd Connector Mounting Type	Style	Length	Length	2nd Contact Gender	Color	2nd Connector	Frequency - Max [Max]
TE Connectivity Linx CSE-SMBM-305-SMBM	Female	RG-316	SMB Plug	105 C	Free Hanging (In-Line)	50 Ohms	50 Ohms	Free Hanging (In-Line)	SMB to SMB	12 "	304.8 mm	Female	Copper	SMB Plug	4 GHz
TE Connectivity Linx CSE-SMBM-152-SMBM	Female	RG-316	SMB Plug	105 C	Free Hanging (In-Line)	50 Ohms	50 Ohms	Free Hanging (In-Line)	SMB to SMB	6 in	152.4 mm	Female	Copper	SMB Plug	4 GHz
TE Connectivity Linx CSE-SMBM-610-SMBM	Female	RG-316	SMB Plug	105 C	Free Hanging (In-Line)	50 Ohms	50 Ohms	Free Hanging (In-Line)	SMB to SMB	24 "	609.6 mm	Female	Copper	SMB Plug	4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.31

General part information

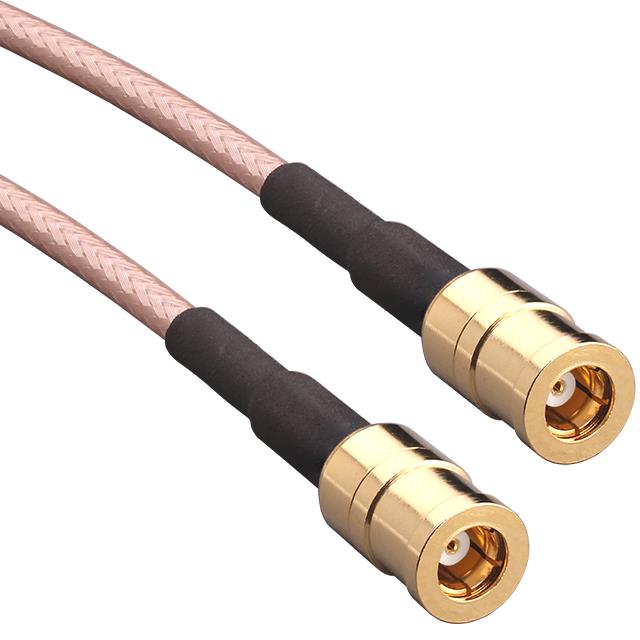

Cable Assembly Coaxial SMB to SMB RG-316 6.000" (152.40mm)

Technical documentation and resources

No documents available
