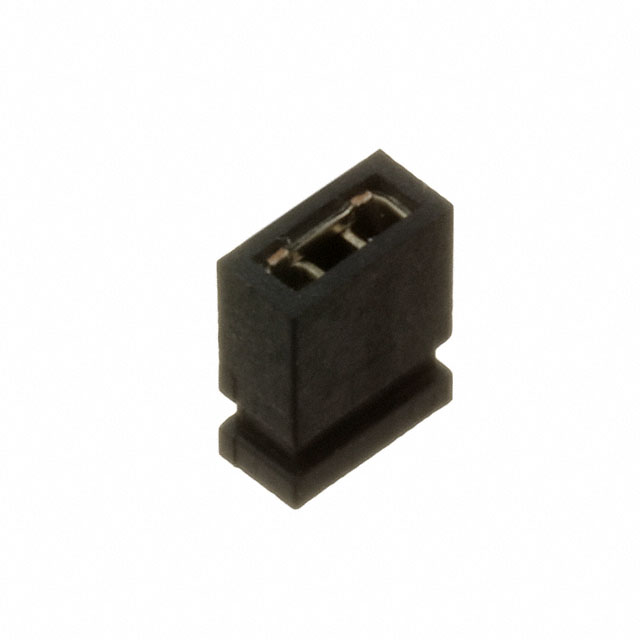

MS2C-G

Active

Adam Tech

MINI SHUNT 2.0MM 2P GOLD

Search across all available documentation for this part.

Active

Adam Tech

MINI SHUNT 2.0MM 2P GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	MS2C-G

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Gender	Female Sockets
Height [z]	0.197 "
Height [z]	5 mm
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Type	Closed Top
Voltage Rating	250 VAC

Part	Housing Material	Voltage Rating	Pitch [x]	Pitch [x]	Material Flammability Rating	Height [z]	Height [z]	Contact Finish	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Type	Color	Gender	Contact Finish Thickness
Adam Tech MS2C-T	Polybutylene Terephthalate (PBT) Glass Filled	250 VAC	0.079 in	2 mm	UL94 V-0	0.197 "	5 mm	Tin	1 x 2	2	Closed Top	Black	Female Sockets
Adam Tech MS2C-G	Polybutylene Terephthalate (PBT) Glass Filled	250 VAC	0.079 in	2 mm	UL94 V-0	0.197 "	5 mm	Gold	1 x 2	2	Closed Top	Black	Female Sockets	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Closed Top 0.079" (2.00mm) Gold
