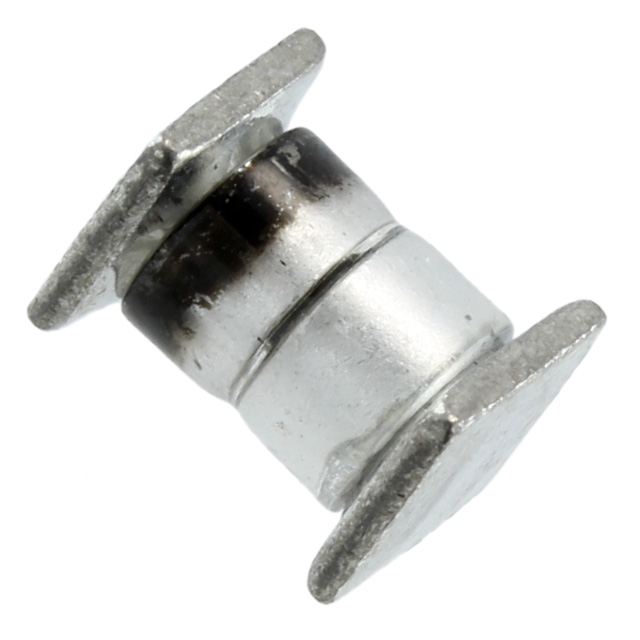

TVS515SM

Active

Microsemi Corporation

TVS DIODE 15VWM 25.2VC E-MELF

Search across all available documentation for this part.

Active

Microsemi Corporation

TVS DIODE 15VWM 25.2VC E-MELF

Technical Specifications

Parameters and characteristics for this part

Specification	TVS515SM

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	19.8 A
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-65 °C
Package / Case	E, SQ-MELF
Power - Peak Pulse	500 W
Power Line Protection	False
Supplier Device Package	E-MELF
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	16.7 V
Voltage - Clamping (Max) @ Ipp	25.2 V
Voltage - Reverse Standoff (Typ)	15 V

Part	Applications	Type	Current - Peak Pulse (10/1000µs)	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Package / Case	Power - Peak Pulse	Power Line Protection	Voltage - Reverse Standoff (Typ)	Mounting Type
Microsemi Corporation TVS515SM	General Purpose	Zener	19.8 A	1	25.2 V	175 ░C	-65 °C	16.7 V	E-MELF	E SQ-MELF	500 W		15 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

25.2V Clamp 19.8A (8/20µs) Ipp Tvs Diode Surface Mount E-MELF
