B10B-PADSS

Active

JST Sales America Inc.

CONN HEADER VERT 10POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 10POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B10B-PADSS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.402 in
Insulation Height	10.2 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	12.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Style	Shrouding	Termination	Number of Positions Loaded	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Material Flammability Rating	Voltage Rating	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Mounting Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mated Stacking Heights	Connector Type	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Insulation Height	Insulation Height	Fastening Type	Contact Material	Insulation Color
JST Sales America Inc. B10B-PADSS	Board to Cable/Wire	Shrouded - 4 Wall	Solder	All	Square	0.134 in	3.4 mm	Male Pin	UL94 V-0	250 VDC	10	0.079 in	2 mm	3 A	Through Hole	Tin	-25 °C	85 °C	12.4 mm	Header	Polyamide (PA66) Nylon 6/6 Glass Filled	0.079 in	2 mm	2	0.402 in	10.2 mm	Locking Ramp	Copper Alloy	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

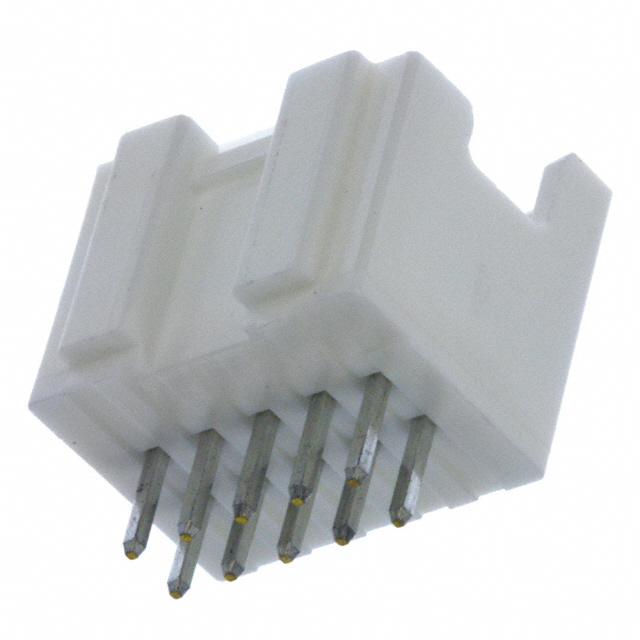

Connector Header Through Hole 10 position 0.079" (2.00mm)
