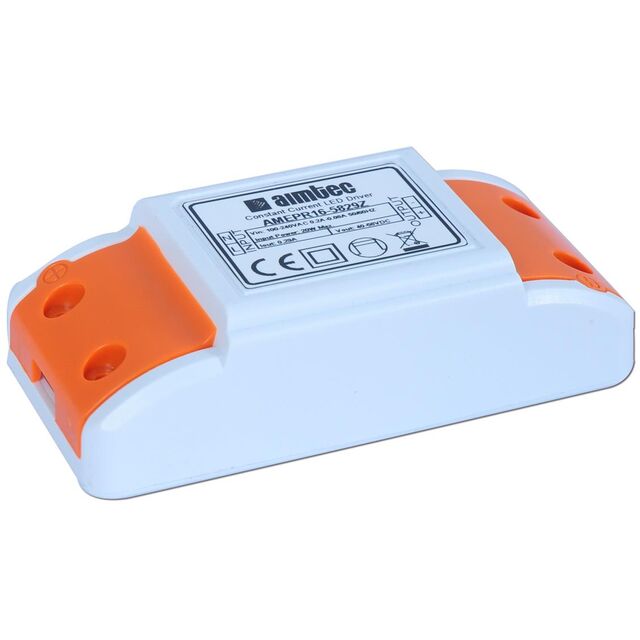

AMEPR16-5829Z
Activeaimtec
LED DRIVER CC AC/DC 40-58V 290MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMEPR16-5829Z
Activeaimtec
LED DRIVER CC AC/DC 40-58V 290MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMEPR16-5829Z |
|---|---|
| Approval Agency | CE |
| Current - Output (Max) [Max] | 290 mA |
| Efficiency | 88 % |
| Features | SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 17 W |
| Ratings | IP20 |
| Size / Dimension [x] | 44.7 mm |
| Size / Dimension [x] | 1.76 in |
| Size / Dimension [y] | 93.5 mm |
| Size / Dimension [y] | 3.68 in |
| Size / Dimension [z] | 1.08 " |
| Size / Dimension [z] | 27.5 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 264 V |
| Voltage - Input (Min) [Min] | 90 V |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 58 V |
| Voltage - Output [Min] | 40 VDC |
| Weight | 0.154 lb |
| Weight | 70 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.88 | |
| 5 | $ 13.33 | |||
| 10 | $ 13.00 | |||
| 15 | $ 12.87 | |||
| 25 | $ 12.61 | |||
| 50 | $ 12.36 | |||
| 75 | $ 11.81 | |||
| 100 | $ 10.41 | |||
| 200 | $ 10.10 | |||
Description
General part information
AMEPR16 Series
290mA 40 ~ 58V Constant Current LED Driver AC DC Converter Topology 1 Output
