680S21WA4PL401 - Seal-D 680S Series

680S21WA4PL401

Active
MH Connectors

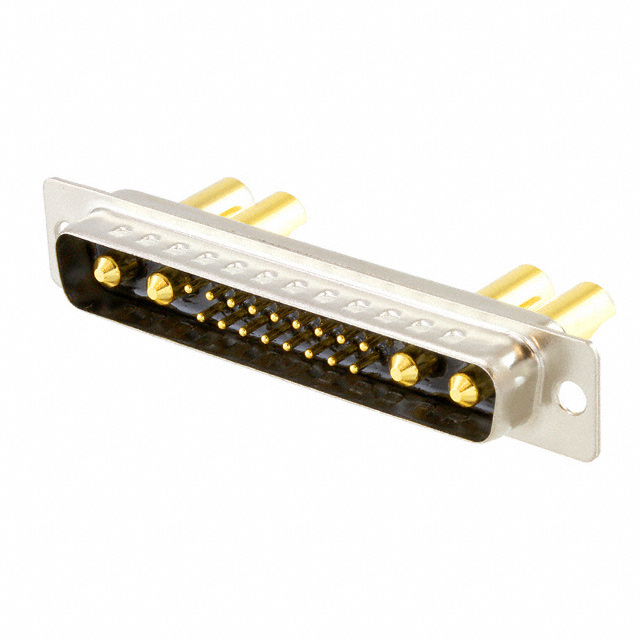

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 680S SERIES, DC-21WA4, PLUG, 21 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMiscellaneous EN+3
680S21WA4PL401 - Seal-D 680S Series

680S21WA4PL401

Active
MH Connectors

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 680S SERIES, DC-21WA4, PLUG, 21 CONTACTS

Deep-Dive with AI

DocumentsDatasheetMiscellaneous EN+3

Technical Specifications

Parameters and characteristics for this part

Specification680S21WA4PL401
ColorBlack
Connector StyleD-Sub, Combo
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper Alloy
Contact TypeSignal and Power
Current Rating (Amps)40 A, 5 A
Dielectric MaterialPolybutylene Terephthalate (PBT), Glass Filled
FeaturesGrounding Indents
Flange FeatureHousing/Shell (Unthreaded)
Ingress ProtectionIP67 - Dust Tight, Waterproof
Material Flammability RatingUL94 V-0
Number of Positions [custom]17
Number of Positions [custom]4
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout21WA4, 4 (DC, C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 21.13
10$ 18.50
25$ 17.71
40$ 17.13
80$ 16.56
240$ 15.65
440$ 15.19
NewarkEach 10$ 24.24
100$ 18.77
500$ 16.99
1000$ 16.16

Description

General part information

680S21W Series

21 (17 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
