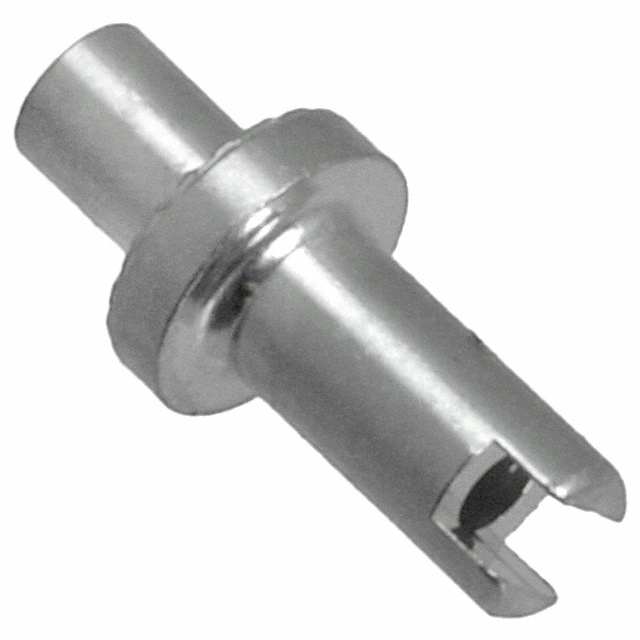

H3051-01

Active

Harwin Inc.

VERTICAL THROUGHBOARD SLOTTED LUG ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

VERTICAL THROUGHBOARD SLOTTED LUG ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H3051-01

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Tin
Contact Material	Brass Alloy
Flange Diameter [Max] [diameter]	0.159 in
Flange Diameter [Max] [diameter]	4.04 mm
Flange Diameter [Min] [diameter]	0.153 in
Flange Diameter [Min] [diameter]	3.88 mm
Insulation	Non-Insulated
Length - Above Board [Max] [x]	0.26 in
Length - Above Board [Max] [x]	6.6 mm
Length - Above Board [Min] [x]	0.247 in
Length - Above Board [Min] [x]	6.27 mm
Length - Below Flange [Max] [x]	0.099 in
Length - Below Flange [Max] [x]	2.51 mm
Length - Below Flange [Min] [x]	2.39 mm
Length - Below Flange [Min] [x]	0.094 in
Length - Overall [Max] [x]	8.99 mm
Length - Overall [Max] [x]	0.354 in
Length - Overall [Min] [x]	0.346 in
Length - Overall [Min] [x]	8.79 mm
Mounting Hole Diameter [Max]	2.21 mm
Mounting Hole Diameter [Max]	0.087 in
Mounting Hole Diameter [Min]	2.13 mm
Mounting Hole Diameter [Min]	0.084 in
Mounting Type	Through Hole
Number of Turrets	Single
Staking Side OD [Max]	0.083 in
Staking Side OD [Max]	2.12 mm
Staking Side OD [Min]	2.03 mm
Staking Side OD [Min]	0.08 in
Terminal Type	Fork, Single End, Hollow
Termination	Swage

Part	Number of Turrets	Terminal Type	Insulation	Board Thickness	Board Thickness	Length - Above Board [Max] [x]	Length - Above Board [Min] [x]	Length - Above Board [Max] [x]	Length - Above Board [Min] [x]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Staking Side OD [Max]	Staking Side OD [Min]	Staking Side OD [Min]	Staking Side OD [Max]	Mounting Type	Contact Material	Length - Below Flange [Max] [x]	Length - Below Flange [Max] [x]	Length - Below Flange [Min] [x]	Length - Below Flange [Min] [x]	Contact Finish	Flange Diameter [Min] [diameter]	Flange Diameter [Max] [diameter]	Flange Diameter [Max] [diameter]	Flange Diameter [Min] [diameter]	Termination	Length - Overall [Min] [x]	Length - Overall [Max] [x]	Length - Overall [Max] [x]	Length - Overall [Min] [x]
Harwin Inc. H3051-01	Single	Fork Hollow Single End	Non-Insulated	1.6 mm	0.063 in	0.26 in	0.247 in	6.6 mm	6.27 mm	2.13 mm	2.21 mm	0.084 in	0.087 in	0.083 in	2.03 mm	0.08 in	2.12 mm	Through Hole	Brass Alloy	0.099 in	2.51 mm	2.39 mm	0.094 in	Tin	0.153 in	0.159 in	4.04 mm	3.88 mm	Swage	0.346 in	8.99 mm	0.354 in	8.79 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.33
Newark	Each	1000	$ 0.38

General part information

Terminal Turret Connector Single End, Fork, Hollow 0.247" ~ 0.260" (6.27mm ~ 6.60mm) Tin
