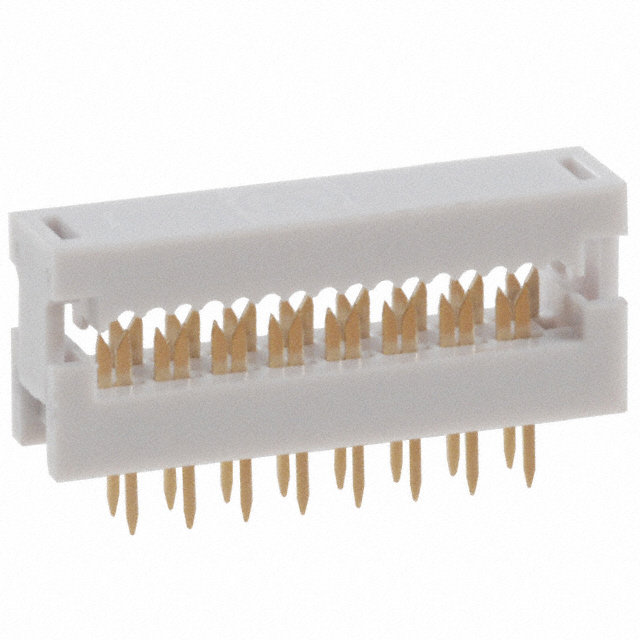

AWLP 16/3,2-G

Active

Assmann WSW Components

2.54MM STRAIGHT GOLD 1.27MM 2 PLUGIN,P=1.27MM IDC CONNECTORS ROHS

Search across all available documentation for this part.

Active

Assmann WSW Components

2.54MM STRAIGHT GOLD 1.27MM 2 PLUGIN,P=1.27MM IDC CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Board-Side Pitch	Board-Side Pitch	Features	Mounting Type	Number of Positions Loaded	Cable Pitch	Cable Pitch	Number of Rows	Connector Type	Cable Termination	Number of Positions	Contact Finish	Row Spacing [x]	Row Spacing	Color
Assmann WSW Components AWLP 16/3,2-T	0.1 in	2.54 mm	Feed Through	Through Hole	All	1.27 mm	0.05 in	2	DIP Header Ribbon Cable	IDC	16	Tin	0.1 in	2.54 mm	Gray
Assmann WSW Components AWLP 16/3,2-G	0.1 in	2.54 mm	Feed Through	Through Hole	All	1.27 mm	0.05 in	2	DIP Header Ribbon Cable	IDC	16	Gold	0.1 in	2.54 mm	Gray
Assmann WSW Components AWLP-16/3.2-T-R	0.1 in	2.54 mm	Feed Through	Through Hole	All	1.27 mm	0.05 in	2	DIP Header Ribbon Cable	IDC	16	Tin	0.1 in	2.54 mm	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Ribbon Cable, DIP Header Connector Gray IDC Through Hole
