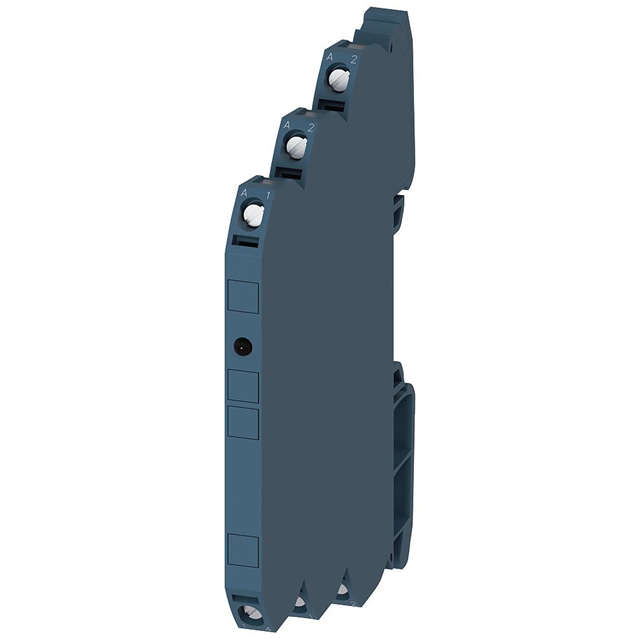

3RQ30181AF00
ActiveSiemens
RELAY GEN PURPOSE SPDT 3A 230V
Deep-Dive with AI
Search across all available documentation for this part.
3RQ30181AF00
ActiveSiemens
RELAY GEN PURPOSE SPDT 3A 230V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RQ30181AF00 |
|---|---|
| Approval Agency | CSA, UL, CCC, EAC |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 3 A |
| Features | Lighted Indicator |
| Load - Max Switching | 750 VA |
| Mounting Type | DIN Rail |
| Operate Time | 9 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Relay Type | General Purpose |
| Release Time | 19 ms |
| Switching Voltage | 250 VAC |
| Termination Style | Screw Terminal |
3RQ301 Series
| Part | Operate Time | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Load - Max Switching | Termination Style | Approval Agency | Coil Voltage | Contact Material | Mounting Type | Switching Voltage | Coil Type | Features | Relay Type | Contact Rating (Current) | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | 9 ms | 19 ms | -25 °C | 60 °C | 750 VA | Screw Terminal | CCC CSA EAC UL | 230 VAC | Silver Tin Oxide (AgSnO) | DIN Rail | 250 VAC | Non Latching | Lighted Indicator | General Purpose | 3 A | SPDT (1 Form C) |
Siemens | 8 ms | 17 ms | -25 °C | 60 °C | 750 VA | Spring Terminal | CCC CSA EAC UL | 115 VAC | Silver Tin Oxide (AgSnO) | DIN Rail | 250 VAC | Non Latching | Lighted Indicator | General Purpose | 3 A | SPDT (1 Form C) |
Siemens | 9 ms | 19 ms | -25 °C | 60 °C | 750 VA | Spring Terminal | CCC CSA EAC UL | 230 VAC | Silver Tin Oxide (AgSnO) | DIN Rail | 250 VAC | Non Latching | Lighted Indicator | General Purpose | 3 A | SPDT (1 Form C) |
Siemens | 12 ms | 14 ms | -25 °C | 60 °C | 750 VA | Spring Terminal | CCC CSA EAC UL | 24 VAC | Silver Tin Oxide (AgSnO) | DIN Rail | 250 VAC | Non Latching | Lighted Indicator | General Purpose | 3 A | SPDT (1 Form C) |
Siemens | 6 ms | 11 ms | -40 °C | 70 °C | 750 VA | Spring Terminal | CCC CSA EAC UL | 110 VDC | Silver Tin Oxide (AgSnO) | DIN Rail | 250 VAC | Non Latching | Lighted Indicator | General Purpose | 3 A | SPDT (1 Form C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 111.04 | |
Description
General part information
3RQ301 Series
General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
