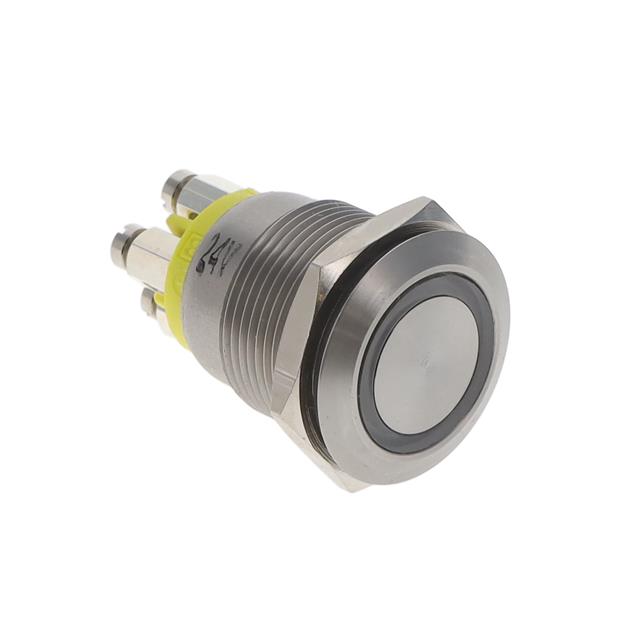

MPI002/TE/AM/24
ActiveBULGIN LIMITED
SWITCH PUSH SPST-NO 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPI002/TE/AM/24
ActiveBULGIN LIMITED
SWITCH PUSH SPST-NO 0.05A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPI002/TE/AM/24 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 50 mA |
| Electrical Life | 35000 Cycles |
| Features | Stainless Steel |
| Illumination Type, Color | Amber, LED |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection | IP66 |
| Mechanical Life | 750000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 19.2 mm |
| Switch Function | Off-Mom |
| Termination Style | Screw Terminal |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - DC | 24 V |
MPI002 Series
| Part | Electrical Life | Mounting Type | Actuator Type | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Switch Function | Ingress Protection | Mechanical Life | Termination Style | Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Illumination Voltage (Nominal) | Features | Color - Actuator/Cap | Circuit | Illumination Type, Color [custom] | Illumination Type, Color [custom] | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | 35000 Cycles | Panel Mount Front | Button Flush Round | 24 V | 19.2 mm | 50 mA | Off-Mom | IP66 | 750000 Cycles | Quick Connect - 0.110" (2.8mm) | Anti-Vandal Illuminated | 70 °C | -30 ░C | No Marking | 3.6 VDC | Stainless Steel | Silver | SPST-NO | Blue/Green | LED | |
BULGIN LIMITED | 35000 Cycles | Panel Mount Front | Button Flush Round | 24 V | 19.2 mm | 50 mA | Off-Mom | IP66 | 750000 Cycles | Quick Connect - 0.110" (2.8mm) | Anti-Vandal Illuminated | 70 °C | -30 ░C | No Marking | 24 V | Stainless Steel | Silver | SPST-NO | Amber LED | ||
BULGIN LIMITED | 35000 Cycles | Panel Mount Front | Button Flush Round | 24 V | 19.2 mm | 50 mA | Off-Mom | IP66 | 750000 Cycles | Wire Leads | Anti-Vandal Illuminated | 70 °C | -30 ░C | No Marking | 24 V | Stainless Steel | Silver | SPST-NO | Green LED | ||
BULGIN LIMITED | 35000 Cycles | Panel Mount Front | Button Flush Round | 24 V | 19.2 mm | 50 mA | Off-Mom | IP66 | 750000 Cycles | Quick Connect - 0.110" (2.8mm) | Anti-Vandal Illuminated | 70 °C | -30 ░C | No Marking | 12 VDC | Stainless Steel | Silver | SPST-NO | LED Red | ||
BULGIN LIMITED | 35000 Cycles | Panel Mount Front | Button Flush Round | 24 V | 19.2 mm | 50 mA | Off-Mom | IP66 | 750000 Cycles | Screw Terminal | Anti-Vandal Illuminated | 70 °C | -30 ░C | No Marking | 6 V | Stainless Steel | Silver | SPST-NO | Blue LED | ||
BULGIN LIMITED | 35000 Cycles | Panel Mount Front | Button Flush Round | 24 V | 19.2 mm | 50 mA | Off-Mom | IP66 | 750000 Cycles | Solder Lug | Anti-Vandal Illuminated | 70 °C | -30 ░C | No Marking | 24 V | Stainless Steel | Silver | SPST-NO | LED Red | ||
BULGIN LIMITED | 35000 Cycles | Panel Mount Front | Button Flush Round | 24 V | 19.2 mm | 50 mA | Off-Mom | IP66 | 750000 Cycles | Screw Terminal | Anti-Vandal Illuminated | 70 °C | -30 ░C | No Marking | 24 V | Stainless Steel | Silver | SPST-NO | Amber LED | ||
BULGIN LIMITED | 35000 Cycles | Panel Mount Front | Button Flush Round | 24 V | 19.2 mm | 50 mA | Off-Mom | IP66 | 750000 Cycles | Quick Connect - 0.110" (2.8mm) | Anti-Vandal Illuminated | 70 °C | -30 ░C | No Marking | 3.6 VDC | Stainless Steel | Silver | SPST-NO | LED White | ||
BULGIN LIMITED | 35000 Cycles | Panel Mount Front | Button Flush Round | 24 V | 19.2 mm | 50 mA | Off-Mom | IP66 | 750000 Cycles | Screw Terminal | Anti-Vandal Illuminated | 70 °C | -30 ░C | No Marking | 24 V | Stainless Steel | Silver | SPST-NO | Green LED | ||
BULGIN LIMITED | 35000 Cycles | Panel Mount Front | Button Flush Round | 24 V | 19.2 mm | 50 mA | Off-Mom | IP66 | 750000 Cycles | Quick Connect - 0.110" (2.8mm) | Anti-Vandal Illuminated | 70 °C | -30 ░C | No Marking | 6 V | Stainless Steel | Silver | SPST-NO | Blue LED |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MPI002 Series
Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
