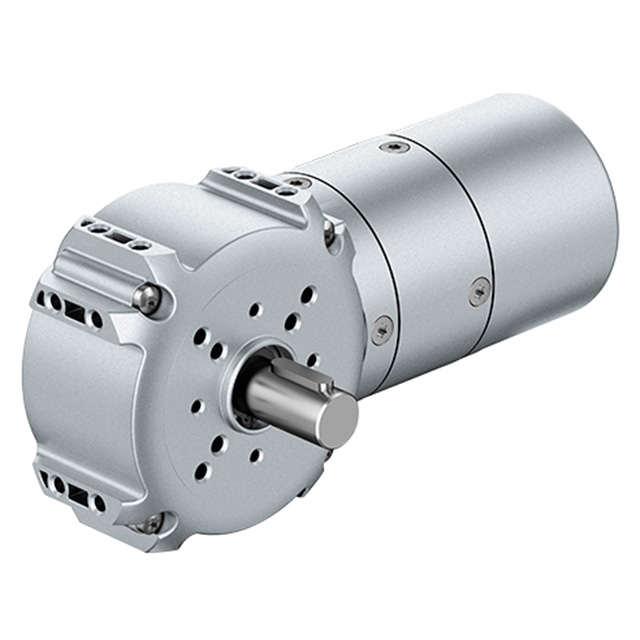

VG.VD4915BK1.EC75.2.33
Activeebm-papst Inc.
GEARMOTOR 135 RPM 24V
Deep-Dive with AI
Search across all available documentation for this part.
VG.VD4915BK1.EC75.2.33
Activeebm-papst Inc.
GEARMOTOR 135 RPM 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VG.VD4915BK1.EC75.2.33 |
|---|---|
| Diameter - Shaft [diameter] | 15 mm |
| Diameter - Shaft [diameter] | 0.591 in |
| Gear Reduction Ratio | 33.3 |
| Length - Shaft and Bearing [x] | 30 mm |
| Length - Shaft and Bearing [x] | 1.181 in |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 2.047 " |
| Mounting Hole Spacing | 52 mm |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| RPM | 135 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 1.929 in |
| Size / Dimension [diameter] | 49 mm |
| Torque - Rated (oz-in / mNm) | 1108 oz-in |
| Torque - Rated (oz-in / mNm) | 7826 mNm |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 587.63 | |
| 10 | $ 565.03 | |||
Description
General part information
VG.VD Series
Brushless (BLDC) DC Motor Gearmotor 135 RPM 24VDC
Documents
Technical documentation and resources
