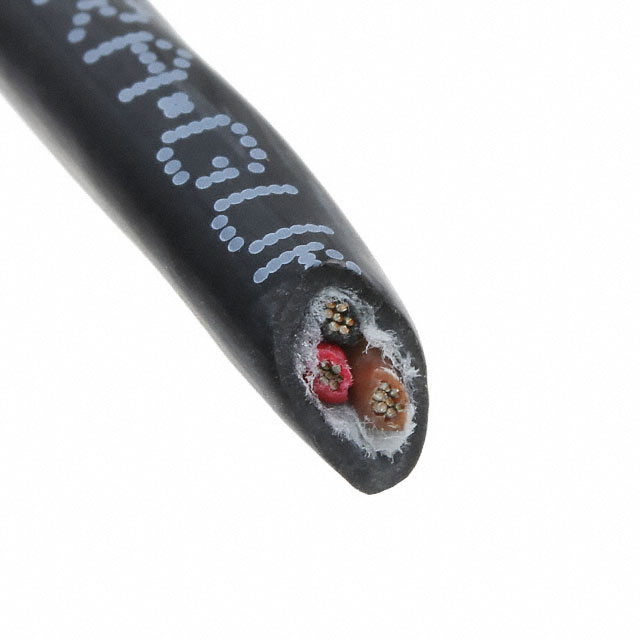

25423 BK199

Active

ALPHA WIRE

25423 BLACK BULK FT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ALPHA WIRE

25423 BLACK BULK FT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	25423 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	9.37 mm
Jacket (Insulation) Diameter [diameter]	0.369 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	ISO 10993, UL Style 20952
Usage	Control, Communication
Voltage	600 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Number of Conductors	Wire Gauge	Ratings	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Usage	Conductor Insulation	Length	Length
ALPHA WIRE 25423 BK199	Polyurethane (PU)	Biological Compatibility Rip Cord	9.37 mm	0.369 in	Black	3	18 AWG	ISO 10993 UL Style 20952	Copper Tinned	1.6 mm	0.063 in	-30 ░C	105 ░C	Multi-Conductor	16	30 AWG	600 V	Communication Control	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 8.50
Newark	1 Foot	25	$ 9.51

General part information

3 Conductor Multi-Conductor Cable Black 18 AWG 1000.0' (304.8m)
