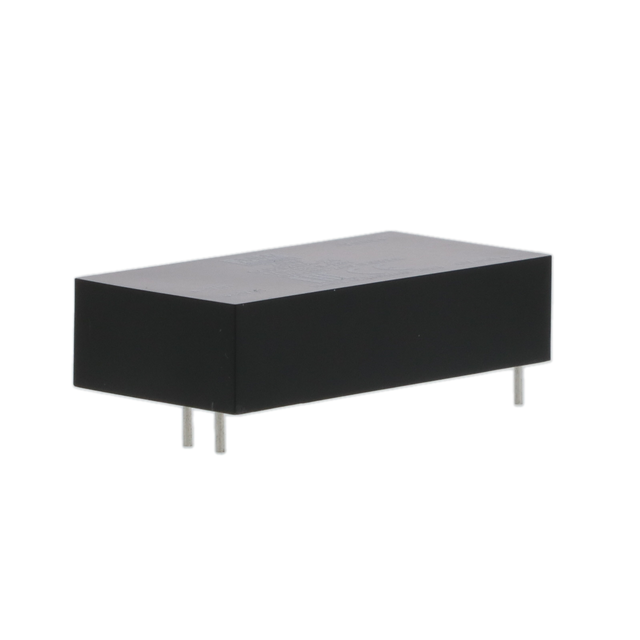

MDS20A-24
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 24V 20W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDS20A-24
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 24V 20W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDS20A-24 |
|---|---|
| Applications | Medical |
| Approval Agency | CE, EAC |
| Current - Output (Max) [Max] | 833 mA |
| Efficiency | 88 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 12 mm |
| Size / Dimension [z] | 0.47 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.73 | |
| 5 | $ 38.26 | |||
| 10 | $ 37.64 | |||
Description
General part information
MDS20 Series
Isolated Module DC DC Converter 1 Output 24V 833mA 9V - 18V Input
