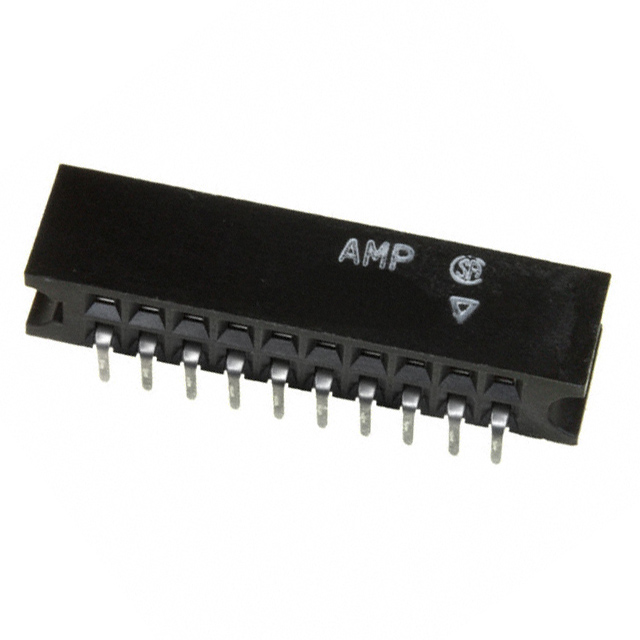

5-532956-3
UnknownTE Connectivity Raychem Cable Protection
20 MODII 2PC CE RCPT ASSY, ROHS
Deep-Dive with AI
Search across all available documentation for this part.
5-532956-3
UnknownTE Connectivity Raychem Cable Protection
20 MODII 2PC CE RCPT ASSY, ROHS
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-532956-3 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 1.27 µm |
| Contact Finish Thickness - Post | 50 µin |
| Contact Length - Post | 2.92 mm |
| Contact Length - Post | 0.115 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | Guide Pin Ears |
| Insulation Color | Black |
| Insulation Height | 6.05 mm |
| Insulation Height | 0.238 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
ampmodu-mod-iv Series
Headers & Wire Housings 08 AMP MODU MT HSG DR .100CL
...
| Part | Pitch [x] | Pitch [x] | Features | Mounting Type | Row Spacing [x] | Row Spacing | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Note | Color | Contact Termination | Contact Type | Number of Rows | Insulation Material | Number of Positions | Fastening Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Termination | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Style | Material Flammability Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 2.54 mm | 0.1 in | Polarizing Key | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Receptacle | -65 ░C | 105 ░C | Contacts Not Included | Black | Crimp | Female Socket | 2 | Thermoplastic | 20 | |||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 2.54 mm | 0.1 in | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Receptacle | -65 ░C | 105 ░C | Contacts Not Included | Black | Crimp | Female Socket | 2 | Thermoplastic | 10 | Detent Lock | |||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Through Hole | Receptacle Bottom or Top Entry | Female Socket | 2 | Polyester Glass Filled | 60 | Push-Pull | 150 Áin | 3.81 Ám | Square | Tin-Lead | 0.1 in | 2.54 mm | Gold | 3.18 mm | 0.125 in | 2.54 mm | 0.1 in | Black | 30 Áin | 0.76 Ám | Phosphor Bronze | Solder | All | 6.73 mm | 0.265 in | |||||||||||||||
TE Connectivity Raychem Cable Protection | 2.54 mm | 0.1 in | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Receptacle | -65 ░C | 105 ░C | Contacts Not Included | Black | Crimp | Female Socket | 2 | Glass Filled Nylon Polyamide (PA) | 44 | ||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Guide Pin Ears | Through Hole Right Angle | Receptacle | Female Socket | 2 | 20 | Push-Pull | 50 µin | 1.27 µm | Square | Tin | 0.1 in | 2.54 mm | Gold | 2.54 mm | 0.1 in | Black | 30 Áin | 0.76 Ám | Phosphor Bronze | Solder | All | 6.05 mm | 0.238 in | 2.92 mm | 0.115 in | |||||||||||||||
TE Connectivity Raychem Cable Protection | Pick and Place | Surface Mount | Receptacle Bottom or Top Entry | -65 ░C | 125 °C | Female Socket | 2 | Polyester Glass Filled | 44 | Push-Pull | 150 Áin | 3.81 Ám | Square | Tin | 0.1 in | 2.54 mm | Gold | 2.54 mm | 0.1 in | Black | 30 Áin | 0.76 Ám | Phosphor Bronze | Solder | All | 6.73 mm | 0.265 in | Board to Board Cable | UL94 V-0 | 2 A | |||||||||||
TE Connectivity Raychem Cable Protection | 2.54 mm | 0.1 in | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Receptacle | -65 ░C | 105 ░C | Contacts Not Included | Black | Crimp | Female Socket | 2 | Glass Filled Nylon Polyamide (PA) | 28 | ||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 2.54 mm | 0.1 in | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Receptacle | -65 ░C | 105 ░C | Contacts Not Included | Black | Crimp | Female Socket | 2 | Glass Filled Nylon Polyamide (PA) | |||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Guide Pin Ears | Through Hole Right Angle | Receptacle | Female Socket | 2 | 12 | Push-Pull | 50 µin | 1.27 µm | Square | Tin | 0.1 in | 2.54 mm | Gold | 2.54 mm | 0.1 in | Black | 15 µin | 0.38 µm | Phosphor Bronze | Solder | All | 6.05 mm | 0.238 in | 2.92 mm | 0.115 in | |||||||||||||||
TE Connectivity Raychem Cable Protection | 2.54 mm | 0.1 in | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Receptacle | -65 ░C | 105 ░C | Contacts Not Included | Black | Crimp | Female Socket | 2 | Glass Filled Nylon Polyamide (PA) | 34 | Detent Lock |
