Technical Specifications
Parameters and characteristics for this part
| Specification | 5002U1 0101000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 25 |
| Features | Rip Cord, Water-Blocked |
| Jacket (Insulation) Diameter [diameter] | 0.377 " |
| Jacket (Insulation) Diameter [diameter] | 9.58 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.737 mm |
| Jacket (Insulation) Thickness | 0.029 in |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style CL3 |
| Usage | Sound, Security |
| Voltage | 300 V |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 2.17 | |
Description
General part information
5002U1 Series

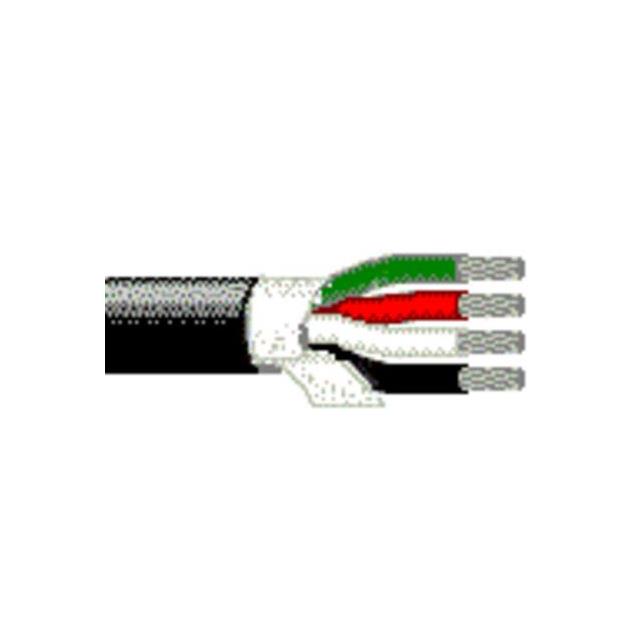

4 Conductor Multi-Conductor Cable Black 12 AWG 1000.0' (304.8m)
