191-009-223R001 - 191-009-223R001

191-009-223R001

Active
MH Connectors

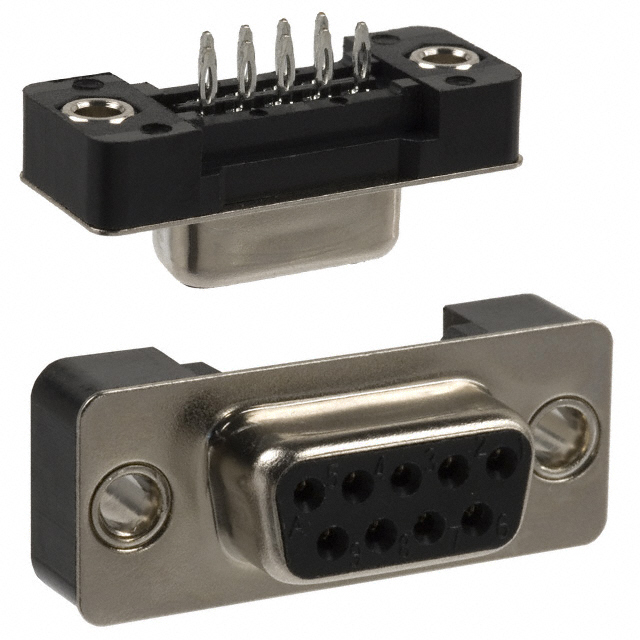

D SUB CONNECTOR, DB9, 9 CONTACTS, RECEPTACLE, PRESS FIT, DE, 191 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+3
191-009-223R001 - 191-009-223R001

191-009-223R001

Active
MH Connectors

D SUB CONNECTOR, DB9, 9 CONTACTS, RECEPTACLE, PRESS FIT, DE, 191 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+3

Technical Specifications

Parameters and characteristics for this part

Specification191-009-223R001
ColorBlack
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialPhosphor Bronze
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA6T), Nylon 6T
FeaturesShielded
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Number of Positions9
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
TerminationPress-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 6.00
10$ 4.59
25$ 4.14
40$ 3.93
80$ 3.65
230$ 3.26
440$ 3.05
945$ 2.83
2400$ 2.59
NewarkEach 250$ 2.89
500$ 2.73
1000$ 2.59

Description

General part information

191-009 Series

9 Position D-Sub Receptacle, Female Sockets Connector
