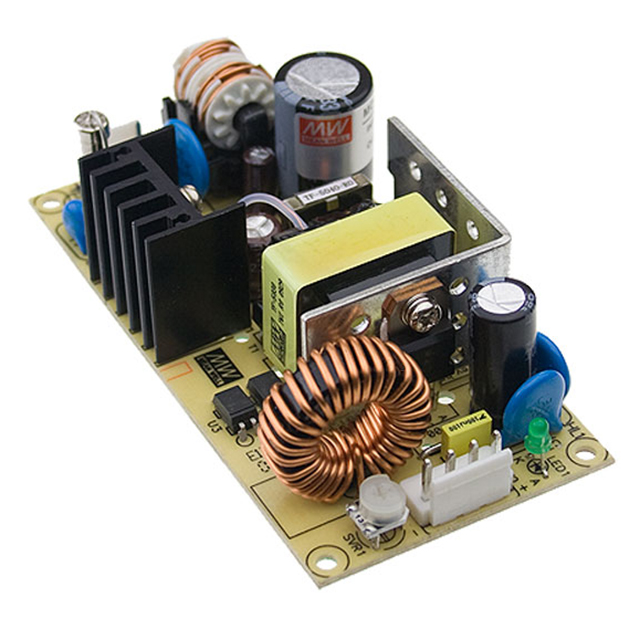

PSD-30A-24
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER 24V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSD-30A-24
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER 24V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSD-30A-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 1.25 A |
| Efficiency | 78 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 1.18 in |
| Size / Dimension [z] | 30 mm |
| Type | Open Frame |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.55 | |
| 5 | $ 12.77 | |||
| 10 | $ 12.45 | |||
Description
General part information
PSD-30 Series
Open Frame DC DC Converter 1 Output 24V 1.25A 18V Input
