50.650 PA/SWL

Active

Jacob GmbH

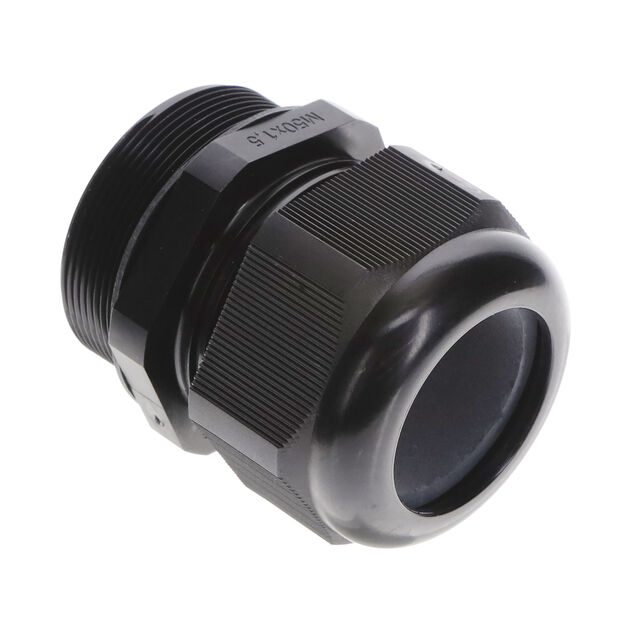

CABLE GLAND 27-35MM M50 POLYAMID

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

50.650 PA/SWL

Active

Jacob GmbH

CABLE GLAND 27-35MM M50 POLYAMID

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	50.650 PA/SWL

Color	Black
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	35 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.378 in
Outside Cable Diameter (Min) [Min] [diameter]	1.063 in
Outside Cable Diameter (Min) [Min] [diameter]	27 mm
Thread Length	0.709 in
Thread Length	18.01 mm
Thread Size	M50x1.5
Type	Cable Gland

50.65 Series

Part	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Color	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)	Material
Jacob GmbH 50.650 PA/SW	M50x1.5	1.063 in	27 mm	Sealing Ring	Cable Gland	IP68 - Dust Tight Waterproof	100 °C	-40 °C	Black	0.472 in	12 mm	35 mm	1.378 in
Jacob GmbH 50.650 PA/RSW	M50x1.5	0.827 in		Sealing Ring	Cable Gland	IP68 - Dust Tight Waterproof	100 °C	-40 °C	Black	0.472 in	12 mm	35 mm	1.378 in	21 mm
Jacob GmbH 50.650M/EMV/L	M50x1.5	0.945 in	24 mm	O-Ring Seal	Cable Gland	IP68 - Dust Tight Waterproof	100 °C	-40 °C	Silver	0.551 in	14 mm	35 mm	1.378 in		Brass Nickel Plated
Jacob GmbH 50.650 M/EMVD	M50x1.5	0.945 in	24 mm	O-Ring Seal	Cable Gland	IP68 - Dust Tight Waterproof	100 °C	-40 °C	Silver	0.354 in	9 mm	35 mm	1.378 in		Brass Nickel Plated
Jacob GmbH 50.650 PA/FL	M50x1.5	1.063 in	27 mm	Sealing Ring	Cable Gland	IP68 - Dust Tight Waterproof	100 °C	-40 °C	Gray	0.472 in	12 mm	35 mm	1.378 in
Jacob GmbH 50.650 PA/SWL	M50x1.5	1.063 in	27 mm	Sealing Ring	Cable Gland	IP68 - Dust Tight Waterproof	100 °C	-40 °C	Black	0.709 in	18.01 mm	35 mm	1.378 in
Jacob GmbH 50.650 M/EMV	M50x1.5	0.945 in	24 mm	O-Ring Seal	Cable Gland	IP68 - Dust Tight Waterproof	100 °C	-40 °C	Silver	0.354 in	9 mm	35 mm	1.378 in		Brass Nickel Plated
Jacob GmbH 50.650 M	M50x1.5	0.945 in	24 mm	O-Ring Seal	Cable Gland	IP68 - Dust Tight Waterproof	100 °C	-40 °C	Silver	0.354 in	9 mm	35 mm	1.378 in		Brass Nickel Plated
Jacob GmbH 50.650 ES	M50x1.5	0.945 in	24 mm	O-Ring Seal	Cable Gland	IP68 - Dust Tight Waterproof	100 °C	-40 °C	Silver	0.354 in	9 mm	35 mm	1.378 in		Stainless Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 15.90
		10	$ 14.09
		25	$ 13.55
		50	$ 13.01
		100	$ 12.28
		250	$ 11.20
		500	$ 10.48
		1000	$ 9.61

Description

General part information

50.65 Series

Cable Gland Polyamide (PA6), Nylon 6 M50x1.5 Black
