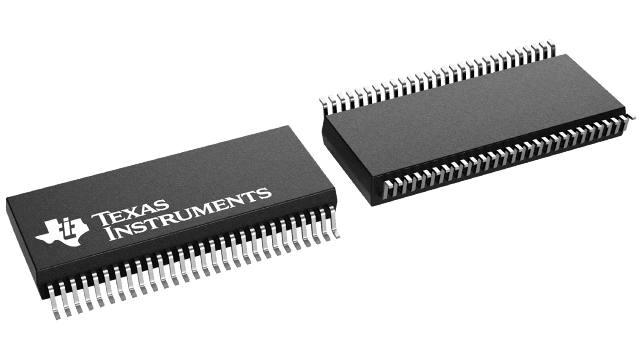

74ACT16646DLR - SSOP (DL)

74ACT16646DLR

Active
Texas Instruments

16-BIT BUS TRANSCEIVERS AND REGISTERS WITH 3-STATE OUTPUTS

Deep-Dive with AI

Search across all available documentation for this part.

74ACT16646DLR - SSOP (DL)

74ACT16646DLR

Active
Texas Instruments

16-BIT BUS TRANSCEIVERS AND REGISTERS WITH 3-STATE OUTPUTS

Technical Specifications

Parameters and characteristics for this part

Specification74ACT16646DLR
Current - Output High, Low24 mA
Mounting TypeSurface Mount
Number of Bits per Element8
Number of Elements2
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Output Type3-State
Package / Case0.295 in
Package / Case56-BSSOP
Package / Case7.5 mm
Supplier Device Package56-SSOP
Voltage - Supply [Max]5.5 V
Voltage - Supply [Min]4.5 V

74ACT16646 Series

PartSupplier Device PackageVoltage - Supply [Min]Voltage - Supply [Max]Package / CasePackage / CasePackage / CaseOutput TypeNumber of Bits per ElementCurrent - Output High, LowMounting TypeOperating Temperature [Max]Operating Temperature [Min]Number of Elements
Texas Instruments
56-SSOP
4.5 V
5.5 V
0.295 in
56-BSSOP
7.5 mm
3-State
8
24 mA
Surface Mount
85 °C
-40 °C
2
Texas Instruments
56-SSOP
4.5 V
5.5 V
0.295 in
56-BSSOP
7.5 mm
3-State
8
24 mA
Surface Mount
85 °C
-40 °C
2
Texas Instruments
56-SSOP
4.5 V
5.5 V
0.295 in
56-BSSOP
7.5 mm
3-State
8
24 mA
Surface Mount
85 °C
-40 °C
2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 5.09
10$ 4.57
25$ 4.32
100$ 3.75
250$ 3.56
500$ 3.19
Digi-Reel® 1$ 5.09
10$ 4.57
25$ 4.32
100$ 3.75
250$ 3.56
500$ 3.19
Tape & Reel (TR) 1000$ 2.69
2000$ 2.56
Texas InstrumentsLARGE T&R 1$ 3.85
100$ 3.14
250$ 2.47
1000$ 2.09

Description

General part information

74ACT16646 Series

The 'ACT16646 are 16-bit bus transceivers consisting of D-type flip-flops and control circuitry with 3-state outputs arranged for multiplexed transmission of data directly from the data bus or from the internal storage registers. The devices can be used as two 8-bit transceivers or one 16-bit transceiver. Data on the A or B bus is clocked into the registers on the low-to-high transition of the appropriate clock (CLKAB or CLKBA) input. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the bus transceivers and registers.

Output-enableand direction-control (DIR) inputs are provided to control the transceiver functions. In the transceiver mode, data present at the high-impedance port may be stored in either register or in both. The select controls (SAB and SBA) can multiplex stored and real-time (transparent mode) data. The circuitry used for select control eliminates the typical decoding glitch that occurs in a multiplexer during the transition between stored and real-time data. DIR determines which bus receives data whenis low. In the isolation mode (high), A data may be stored in one register and/or B data may be stored in the other register.

When an output function is disabled, the input function is still enabled and may be used to store and transmit data. Only one of the two buses, A or B, may be driven at a time.
