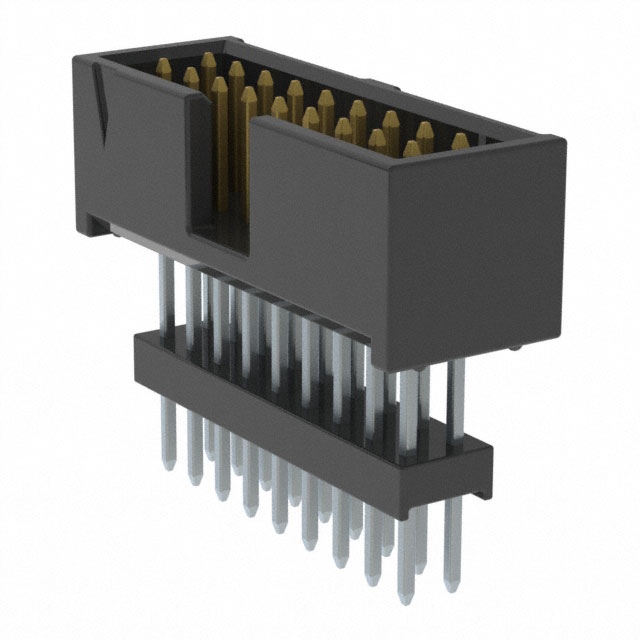

ZSS-109-03-F-D-690

Active

Samtec Inc.

.100" SHROUDED ELEVATED TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

ZSS-109-03-F-D-690

Active

Samtec Inc.

.100" SHROUDED ELEVATED TERMINAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-109-03-F-D-690

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post [x]	3.56 mm
Contact Length - Post [x]	0.14 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.69 "
Insulation Height	17.53 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.83 in
Overall Contact Length	21.08 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

ZSS-109 Series

Part	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Shrouding	Contact Finish - Post	Number of Rows	Contact Material	Style	Features	Termination	Insulation Color	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded	Material Flammability Rating	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Type	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish - Mating	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ZSS-109-01-L-D-450	Through Hole	6.35 mm	0.25 in	Square	0.1 in	2.54 mm	-55 °C	125 °C	Polyester Glass Filled	Shrouded - 4 Wall	Tin	2	Phosphor Bronze	Board to Board Cable	Keying Slot	Solder	Black	11.43 mm	0.45 in	3 A	10 çin	0.25 çm	Elevated Header	All	UL94 V-0	Push-Pull	2.54 mm	0.1 in	0.18 in	4.57 mm	Male Pin	0.63 "	16 mm	Gold	18
Samtec Inc. ZSS-109-01-L-D-540	Through Hole	6.35 mm	0.25 in	Square	0.1 in	2.54 mm	-55 °C	125 °C	Polyester Glass Filled	Shrouded - 4 Wall	Tin	2	Phosphor Bronze	Board to Board Cable	Keying Slot	Solder	Black	13.72 mm	0.54 in	3 A	10 çin	0.25 çm	Elevated Header	All	UL94 V-0	Push-Pull	2.54 mm	0.1 in	0.09 "	2.29 mm	Male Pin	0.63 "	16 mm	Gold	18
Samtec Inc. ZSS-109-02-S-D-570
Samtec Inc. ZSS-109-07-G-D-1040	Through Hole	6.35 mm	0.25 in	Square	0.1 in	2.54 mm	-55 °C	125 °C	Polyester Glass Filled	Shrouded - 4 Wall	Gold	2	Phosphor Bronze	Board to Board Cable	Keying Slot	Solder	Black	26.42 mm	1.04 "	3 A	10 çin	0.25 çm	Elevated Header	All	UL94 V-0	Push-Pull	2.54 mm	0.1 in	0.19 in	4.83 mm	Male Pin			Gold	18	1.23 in	31.24 mm	3 µin	0.076 µm
Samtec Inc. ZSS-109-04-S-D-715	Through Hole			Square	0.1 in	2.54 mm	-55 °C	125 °C	Polyester Glass Filled	Shrouded - 4 Wall	Gold	2	Phosphor Bronze	Board to Board Cable		Solder	Black						Elevated Header		UL94 V-0	Push-Pull	2.54 mm	0.1 in			Male Pin			Gold	18
Samtec Inc. ZSS-109-02-L-D-595	Through Hole	6.35 mm	0.25 in	Square	0.1 in	2.54 mm	-55 °C	125 °C	Polyester Glass Filled	Shrouded - 4 Wall	Tin	2	Phosphor Bronze	Board to Board Cable	Keying Slot	Solder	Black	15.11 mm	0.595 in	3 A	10 çin	0.25 çm	Elevated Header	All	UL94 V-0	Push-Pull	2.54 mm	0.1 in			Male Pin			Gold	18	0.73 in	18.54 mm			0.135 in	3.43 mm
Samtec Inc. ZSS-109-01-H-D-450-LL	Through Hole	6.35 mm	0.25 in	Square	0.1 in	2.54 mm	-55 °C	125 °C	Polyester Glass Filled	Shrouded - 4 Wall	Gold	2	Phosphor Bronze	Board to Board Cable	Keying Slot	Kinked Pin Solder	Black	11.43 mm	0.45 in	3 A	30 Áin	0.76 Ám	Elevated Header	All	UL94 V-0	Push-Pull	2.54 mm	0.1 in	0.18 in	4.57 mm	Male Pin	0.63 "	16 mm	Gold	18			3 µin	0.076 µm
Samtec Inc. ZSS-109-04-T-D-815
Samtec Inc. ZSS-109-03-F-D-740	Through Hole	6.35 mm	0.25 in	Square	0.1 in	2.54 mm	-55 °C	125 °C	Polyester Glass Filled	Shrouded - 4 Wall	Tin	2	Phosphor Bronze	Board to Board Cable	Keying Slot	Solder	Black	18.8 mm	0.74 in	3 A	3 µin	0.076 µm	Elevated Header	All	UL94 V-0	Push-Pull	2.54 mm	0.1 in	0.09 "	2.29 mm	Male Pin			Gold	18	0.83 in	21.08 mm
Samtec Inc. ZSS-109-03-F-D-690	Through Hole	6.35 mm	0.25 in	Square	0.1 in	2.54 mm	-55 °C	125 °C	Polyester Glass Filled	Shrouded - 4 Wall	Tin	2	Phosphor Bronze	Board to Board Cable	Keying Slot	Solder	Black	17.53 mm	0.69 "	3 A	3 µin	0.076 µm	Elevated Header	All	UL94 V-0	Push-Pull	2.54 mm	0.1 in			Male Pin			Gold	18	0.83 in	21.08 mm			0.14 in	3.56 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.29

Description

General part information

ZSS-109 Series

Connector Header Through Hole 18 position 0.100" (2.54mm)
