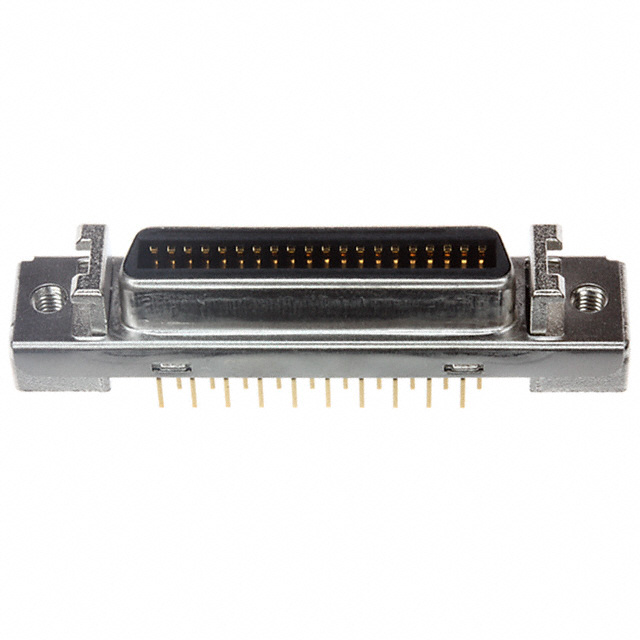

10240-6212PC

Active

3M (TC)

D SUB CONNECTOR, 40 CONTACTS, RECEPTACLE, SOLDER, MDR 102 SERIES, STEEL BODY

Search across all available documentation for this part.

Active

3M (TC)

D SUB CONNECTOR, 40 CONTACTS, RECEPTACLE, SOLDER, MDR 102 SERIES, STEEL BODY

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Flange Feature	Flange Feature	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Connector Style	Contact Finish	Number of Rows	Mounting Type	Features
3M (TC) 10240-6212VC	40	Housing/Shell	2.6 M	Receptacle	0.76 Ám	30 Áin	Solder	Outer Shroud Contacts	Gold	2	Panel Mount Through Hole	Shielded
3M (TC) 10240-55G3VC	40	Housing/Shell	2.6 M	Receptacle	0.76 Ám	30 Áin	Solder	Outer Shroud Contacts	Gold	2	Panel Mount Right Angle Through Hole	Board Lock Shielded
3M (TC) 10240-0210EC	40	Housing/Shell	2.6 M	Receptacle	0.76 Ám	30 Áin	IDC	Outer Shroud Contacts	Gold	2	Free Hanging (In-Line)	Shielded
3M (TC) 10240-55G3PC	40	Housing/Shell	2.6 M	Receptacle	0.76 Ám	30 Áin	Solder	Outer Shroud Contacts	Gold	2	Panel Mount Right Angle Through Hole	Board Lock Shielded
3M (TC) 10240-1S10PE	40	Housing/Shell	2.6 M	Receptacle	0.51 µm	20 µin	Solder	Outer Shroud Contacts	Gold	2	Surface Mount Right Angle	Board Guide Shielded
3M (TC) 10240-6212PC	40	Housing/Shell	2.6 M	Receptacle	0.76 Ám	30 Áin	Solder	Outer Shroud Contacts	Gold	2	Panel Mount Through Hole	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Receptacle Connector Panel Mount, Through Hole Solder
