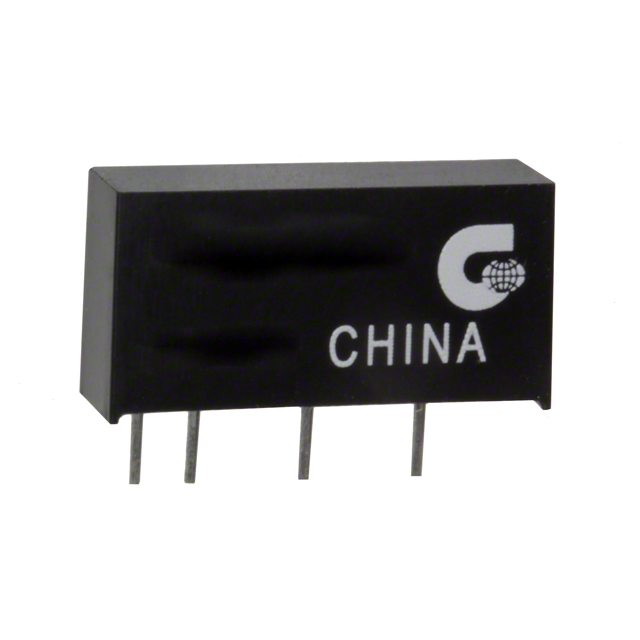

DB10D1BH1
ActiveGlobTek, Inc.
SIP,19.5X6MM ISOLATED POWER MODULES ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DB10D1BH1
ActiveGlobTek, Inc.
SIP,19.5X6MM ISOLATED POWER MODULES ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DB10D1BH1 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 84 mA |
| Efficiency | 70 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension [x] | 19.5 mm |
| Size / Dimension [x] | 0.77 " |
| Size / Dimension [y] | 6 mm |
| Size / Dimension [y] | 0.24 in |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 10 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DB10D1 Series
Isolated Module DC DC Converter 1 Output 12V 84mA 4.5V - 5.5V Input
