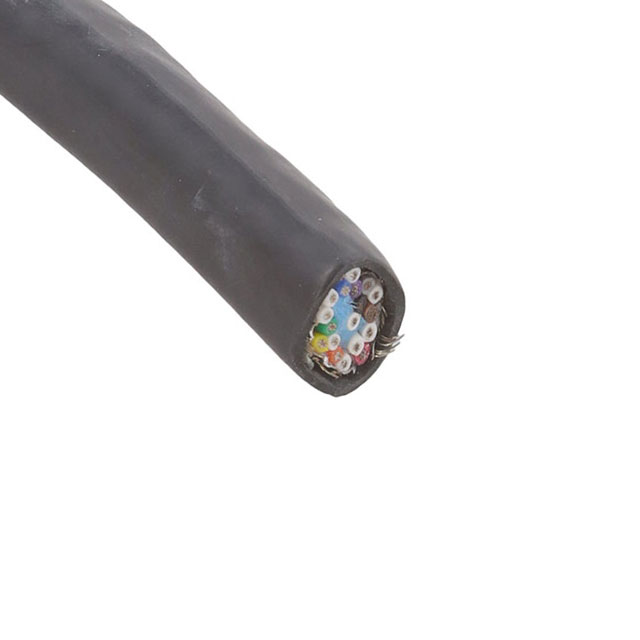

25279 BK005
ActiveALPHA WIRE
MULTI-PAIR 18COND 24AWG BLK 100'
Deep-Dive with AI
Search across all available documentation for this part.
25279 BK005
ActiveALPHA WIRE
MULTI-PAIR 18COND 24AWG BLK 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 25279 BK005 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord, Biological Compatibility, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 9.14 mm |
| Jacket (Insulation) Diameter [diameter] | 0.36 " |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket Color | Black |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 18 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 |
| Shield Coverage | 70 %, 100 % |
| Shield Material | Copper, Tinned, Suprashield® |
| Shield Type | Foil, Braid |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 1081.58 | |
| 3 | $ 1004.33 | |||
Description
General part information
25279 Series
18 (9 Pair Twisted) Conductor Multi-Pair Cable Black 24 AWG Foil, Braid 100.0' (30.5m)
