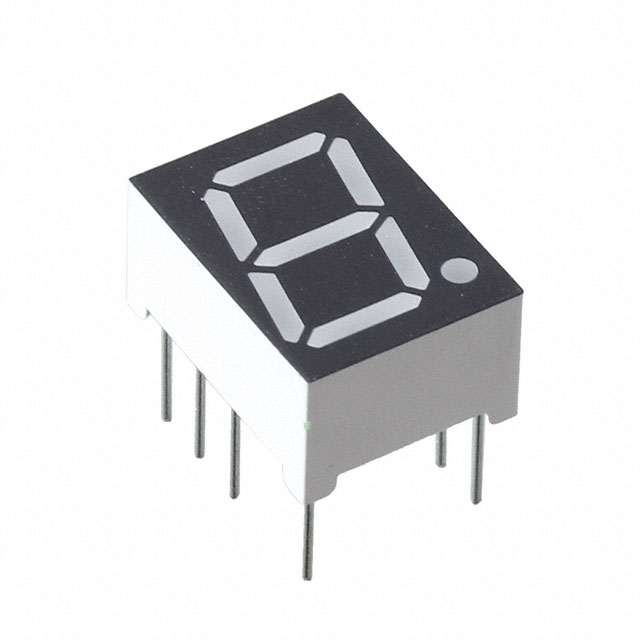

INND-TS40GAB

Active

Inolux

DISPLAY 7SEG 0.4" SGL GRN 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

INND-TS40GAB

Active

Inolux

DISPLAY 7SEG 0.4" SGL GRN 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	INND-TS40GAB

Color	Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	7-Segment
Millicandela Rating	150 mcd
Number of Characters [custom]	1
Power Dissipation (Max) [Max]	114 mW
Size / Dimension [x]	0.508 in
Size / Dimension [x]	12.9 mm
Size / Dimension [y]	9.63 mm
Size / Dimension [y]	0.379 "
Size / Dimension [z]	6.36 mm
Size / Dimension [z]	0.25 "
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength - Peak	525 nm

INND-TS40 Series

Part	Display Type	Current - Test	Digit/Alpha Size	Digit/Alpha Size [custom]	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Millicandela Rating	Common Pin	Number of Characters [custom]	Voltage - Forward (Vf) (Typ)	Color	Power Dissipation (Max) [Max]
Inolux INND-TS40GAB	7-Segment	20 mA	10.16 mm	0.4 in	525 nm	0.508 in	12.9 mm	9.63 mm	6.36 mm	0.379 "	0.25 "	150 mcd	Common Anode	1	3.2 V	Green	114 mW
Inolux INND-TS40DRAG	7-Segment	20 mA	10.16 mm	0.4 in	660 nm	0.508 in	12.9 mm	9.63 mm	6.36 mm	0.379 "	0.25 "	20 mcd	Common Anode	1	2 V	Red	70 mW
Inolux INND-TS40DRAB	7-Segment	20 mA	10.16 mm	0.4 in	660 nm	0.508 in	12.9 mm	9.63 mm	6.36 mm	0.379 "	0.25 "	20 mcd	Common Anode	1	2 V	Red	70 mW
Inolux INND-TS40WCB	7-Segment	20 mA	10.16 mm	0.4 in		0.508 in	12.9 mm	9.63 mm	6.36 mm	0.379 "	0.25 "	55 mcd	Common Cathode	1	3.2 V	White	114 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5472	$ 0.51

Description

General part information

INND-TS40 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 3.2V 20mA 0.508" H x 0.379" W x 0.250" D (12.90mm x 9.63mm x 6.36mm) 10-DIP (0.300", 7.62mm)
