PL155-47
ActiveRemington Industries

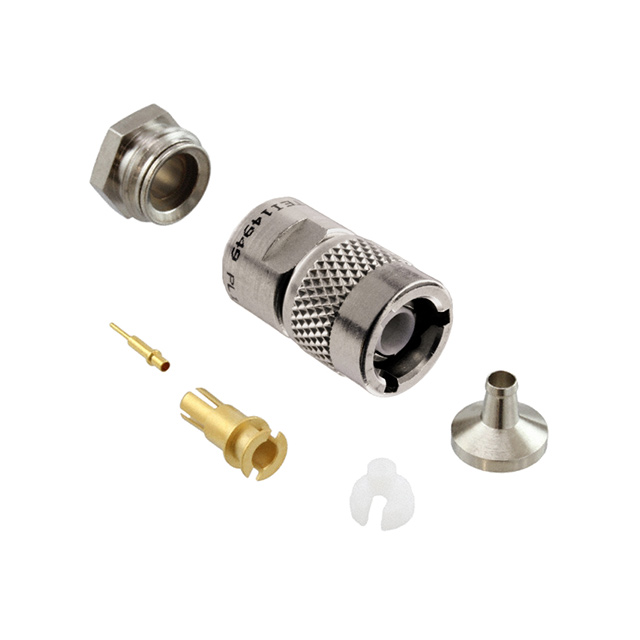

TRS PL155-47 TWINAXIAL CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PL155-47
ActiveRemington Industries
TRS PL155-47 TWINAXIAL CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PL155-47 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | M17/176-00002 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | TRS, Twinaxial/Triaxial |
| Connector Type | Plug, Male Pin (Concentric) |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Features | Three Lug |
| Frequency - Max [Max] | 500 MHz |
| Housing Color | Silver |
| Impedance | Non-Constant |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Wrench Clamp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 93.29 | |
Description
General part information
PL155 Series
TRS, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder
