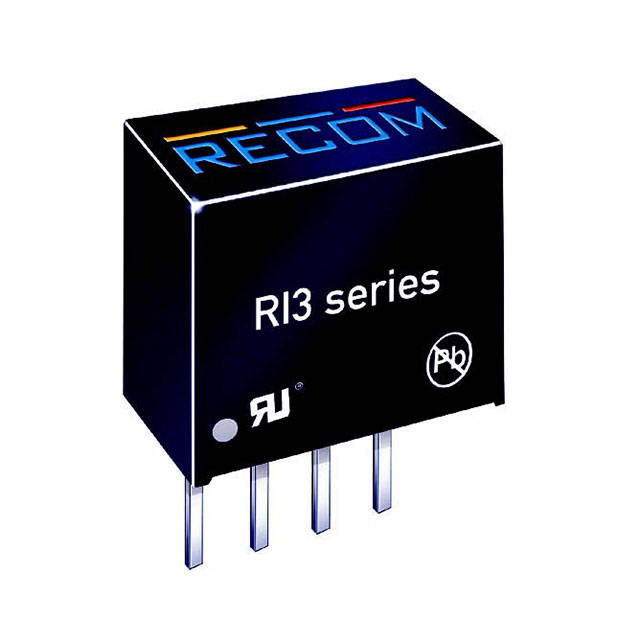

RI3-1512S

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3W 15VIN 12VOUT 250MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RI3-1512S

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3W 15VIN 12VOUT 250MA

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RI3-1512S

Applications	ITE (Commercial)
Current - Output (Max) [Max]	250 mA
Efficiency	88 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-SIP Module
Power (Watts)	3 W
Size / Dimension [x]	11.4 mm
Size / Dimension [x]	0.45 in
Size / Dimension [y]	0.3 "
Size / Dimension [y]	7.6 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	16.5 V
Voltage - Input (Min) [Min]	13.5 V
Voltage - Isolation	1000 V
Voltage - Output 1	12 V

RI3-1512 Series

Isolated DC/DC Converters - Through Hole 3W 5Vin 5Vout 600mA

Part	Applications	Efficiency	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Type	Package / Case	Power (Watts)	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs
RECOM Power RI3-1212S/H3	ITE (Commercial)	89 %	Through Hole	11.4 mm	0.4 "	0.45 in	0.3 "	10.2 mm	7.6 mm	13.2 V	250 mA	3000 V	12 V	Isolated Module	4-SIP Module	3 W	10.8 V	85 °C	-40 °C	1
RECOM Power RI3-1505S/H2	ITE (Commercial)	85 %	Through Hole	11.4 mm	0.4 "	0.45 in	0.3 "	10.2 mm	7.6 mm	16.5 V	600 mA	2000 V	5 V	Isolated Module	4-SIP Module	3 W	13.5 V	85 °C	-40 °C	1
RECOM Power RI3-1209S/H2	ITE (Commercial)	88 %	Through Hole	11.4 mm	0.4 "	0.45 in	0.3 "	10.2 mm	7.6 mm	13.2 V	333 mA	2000 V	9 V	Isolated Module	4-SIP Module	3 W	10.8 V	85 °C	-40 °C	1
RECOM Power RI3-1215S/H2	ITE (Commercial)	89 %	Through Hole	11.4 mm	0.4 "	0.45 in	0.3 "	10.2 mm	7.6 mm	13.2 V	200 mA	2000 V	15 V	Isolated Module	4-SIP Module	3 W	10.8 V	85 °C	-40 °C	1
RECOM Power RI3-2412S/H2	ITE (Commercial)	90 %	Through Hole	11.4 mm	0.4 "	0.45 in	0.3 "	10.2 mm	7.6 mm	26.4 V	250 mA	2000 V	12 V	Isolated Module	4-SIP Module	3 W	21.6 V	85 °C	-40 °C	1
RECOM Power RI3-2409S/H3	ITE (Commercial)	89 %	Through Hole	11.4 mm	0.4 "	0.45 in	0.3 "	10.2 mm	7.6 mm	26.4 V	333 mA	3000 V	9 V	Isolated Module	4-SIP Module	3 W	21.6 V	85 °C	-40 °C	1
RECOM Power RI3-2412S/H3	ITE (Commercial)	90 %	Through Hole	11.4 mm	0.4 "	0.45 in	0.3 "	10.2 mm	7.6 mm	26.4 V	250 mA	3000 V	12 V	Isolated Module	4-SIP Module	3 W	21.6 V	85 °C	-40 °C	1
RECOM Power RI3-1512S	ITE (Commercial)	88 %	Through Hole	11.4 mm	0.4 "	0.45 in	0.3 "	10.2 mm	7.6 mm	16.5 V	250 mA	1000 V	12 V	Isolated Module	4-SIP Module	3 W	13.5 V	85 °C	-40 °C	1
RECOM Power RI3-1505S	ITE (Commercial)	85 %	Through Hole	11.4 mm	0.4 "	0.45 in	0.3 "	10.2 mm	7.6 mm	16.5 V	600 mA	1000 V	5 V	Isolated Module	4-SIP Module	3 W	13.5 V	85 °C	-40 °C	1
RECOM Power RI3-0509S/H2	ITE (Commercial)	86 %	Through Hole	11.4 mm	0.4 "	0.45 in	0.3 "	10.2 mm	7.6 mm	5.5 V	333 mA	2000 V	9 V	Isolated Module	4-SIP Module	3 W	4.5 V	85 °C	-40 °C	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 11.90
		5	$ 11.46
		10	$ 11.27
		25	$ 11.03
		50	$ 10.85
		100	$ 10.67
		250	$ 10.44
		500	$ 10.27
Sager	N/A	1	$ 11.36
		5	$ 10.99
		10	$ 10.50
		25	$ 10.18
		50	$ 10.04
		100	$ 9.74
		250	$ 9.10

Description

General part information

RI3-1512 Series

Isolated DC/DC Converters - Through Hole 3W 5Vin 5Vout 600mA
