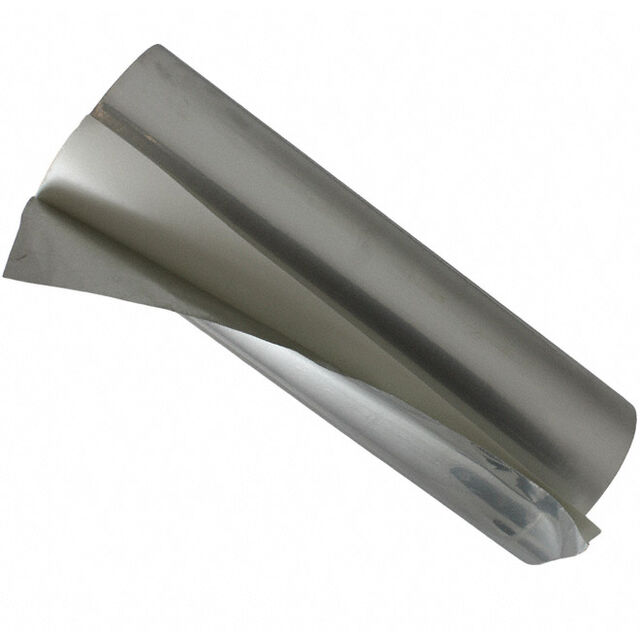

1183-11.5-6

Active

3M (TC)

RF EMI SHLDING SHEET 18' X 11.5"

Search across all available documentation for this part.

Active

3M (TC)

RF EMI SHLDING SHEET 18' X 11.5"

Technical Specifications

Parameters and characteristics for this part

Specification	1183-11.5-6

Adhesive	Conductive, Single Sided
Length	5.5 m
Length	18 '
Material	Tin-Plated Copper Foil
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall	0.003 "
Thickness - Overall	0.07 mm
Type	Shielding Sheet
Width [x]	292 mm
Width [x]	11.5 in

Part	Type	Shelf Life Start	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Width [x]	Width [x]	Length	Length	Material	Adhesive	Thickness - Overall	Thickness - Overall
3M (TC) 1126-11.5-6	Shielding Sheet	Date of Manufacture	60 Months	-40 °C	130 °C	27 °C 80 °F	10 °C	292 mm	11.5 in	5.5 m	18 '	Copper Foil	Conductive Single Sided	0.09 mm	0.004 in
3M (TC) 11.5-6-1182	Shielding Sheet							292 mm	11.5 in	5.5 m	18 '	Copper Foil	Conductive Single Sided	0.09 mm	0.004 in
3M (TC) 1183-11.5-6	Shielding Sheet	Date of Manufacture	60 Months	-40 °C	130 °C	27 °C 80 °F	10 °C	292 mm	11.5 in	5.5 m	18 '	Tin-Plated Copper Foil	Conductive Single Sided	0.07 mm	0.003 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Sheet 1183 Tin-Plated Copper Foil Conductive, Single Sided 11.500" (292.00mm) X 18.000' (5.50m) X 0.003" (0.07mm)
