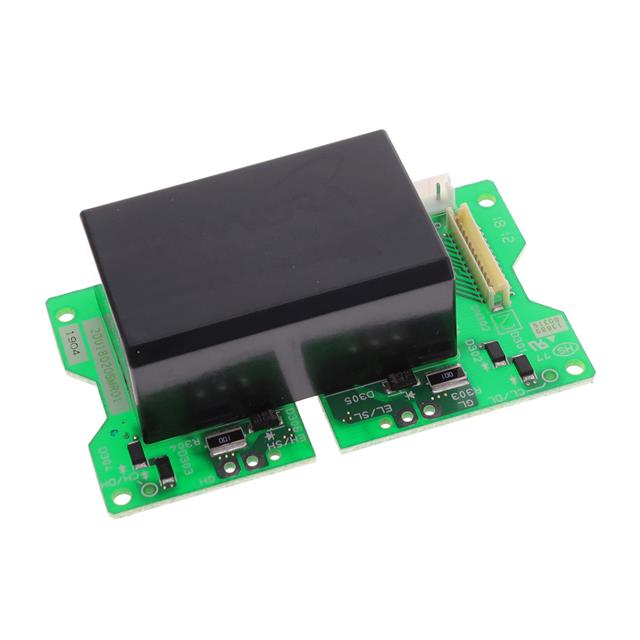

2DU180206MR01
ObsoleteTamura
IC GATE DRVR HALF-BRIDGE MODULE
Deep-Dive with AI
Search across all available documentation for this part.
2DU180206MR01
ObsoleteTamura
IC GATE DRVR HALF-BRIDGE MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2DU180206MR01 |
|---|---|
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Gate Type | SiC MOSFET |
| Logic Voltage - VIL, VIH | 0.8 V, 2 V |
| Mounting Type | Chassis Mount |
| Number of Drivers | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Rise / Fall Time (Typ) [custom] | 500 ns |
| Rise / Fall Time (Typ) [custom] | 500 ns |
| Supplier Device Package | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2DU180206 Series
Half-Bridge Gate Driver IC Module
Documents
Technical documentation and resources
No documents available
