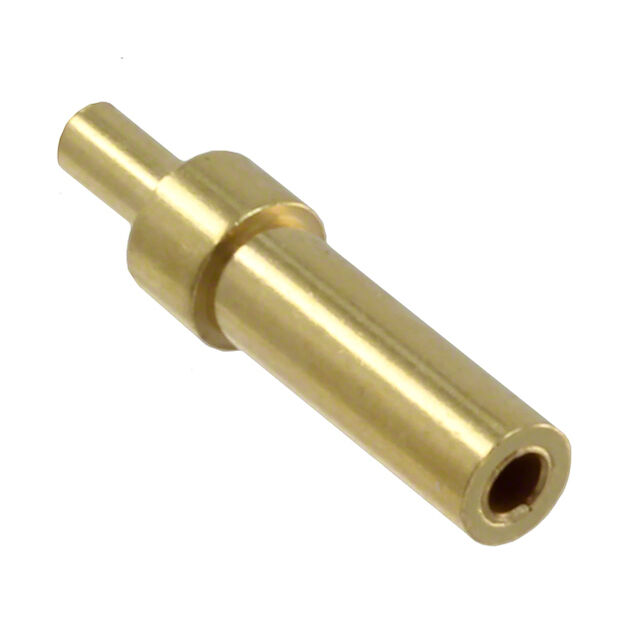

8731-0-19-15-34-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .032-.046 CRIMP
Deep-Dive with AI
DocumentsPin Receptacles
Technical Specifications
Parameters and characteristics for this part
| Specification | 8731-0-19-15-34-27-10-0 |
|---|---|
| Accepts Pin Diameter | 0.81 mm, 1.17 mm |
| Accepts Pin Diameter [Max] | 0.046 in |
| Accepts Pin Diameter [Min] | 0.032 " |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter | 3.18 mm |
| Flange Diameter [diameter] | 0.125 in |
| Length - Overall [x] | 12.95 mm |
| Length - Overall [x] | 0.51 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 1.63 mm |
| Pin Hole Diameter [diameter] | 0.064 in |
| Socket Depth | 0.28 in |
| Socket Depth | 7.11 mm |
| Tail Type | No Tail |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.74 | |
Description
General part information
8731-0 Series
Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Crimp
