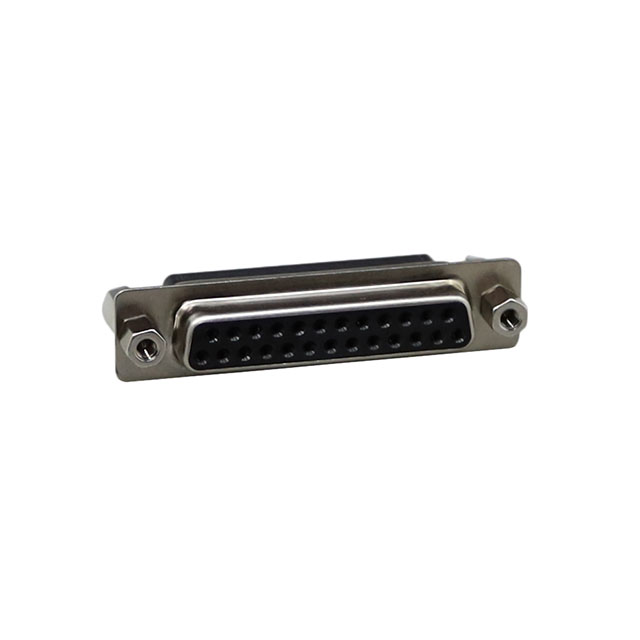

K88X-BD-25S-BRJ
ActiveKycon, Inc.
CONN D-SUB RCPT 25POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
K88X-BD-25S-BRJ
ActiveKycon, Inc.
CONN D-SUB RCPT 25POS VERT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K88X-BD-25S-BRJ |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Board Side (4-40), Mating Side, Female Screwlock (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.68 | |
| 20 | $ 7.02 | |||
| 40 | $ 6.69 | |||
| 60 | $ 6.50 | |||
| 100 | $ 6.27 | |||
| 260 | $ 6.00 | |||
Description
General part information
K88X-BD Series
25 Position D-Sub Receptacle, Female Sockets Connector
