KE061151A000G

Active

Amphenol Anytek

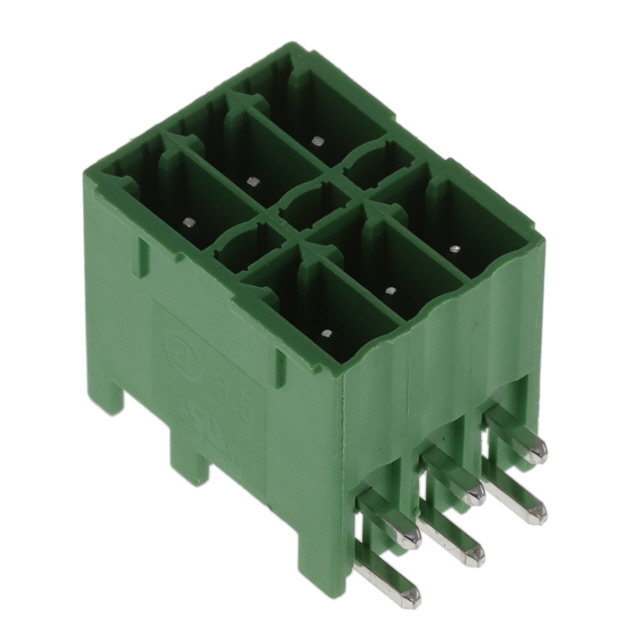

TERM BLOCK HDR 6POS 3.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KE061151A000G

Active

Amphenol Anytek

TERM BLOCK HDR 6POS 3.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KE061151A000G

Color	Green
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	0.102 in
Contact Tail Length	2.6 mm
Current - UL	5.5 A
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height	15.19 mm
Insulation Height	0.598 "
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	3
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	160 V

KE06 Series

Part	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Levels	Positions Per Level	Type	Termination Style	Insulation Height [z]	Insulation Height [z]	Mounting Type	Housing Material	Number of Positions	Features	Header Orientation	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Contact Material	Current - UL	Contact Mating Finish	Voltage - UL	Insulation Height	Insulation Height
Amphenol Anytek KE061250A000G	3.5 mm	0.138 in	-40 °C	115 °C	Green	2	3	Header Male Pins Shrouded (4 Side)	Solder	0.524 in	13.3 mm	Through Hole	Thermoplastic	6	Mating Flange	Vertical	0.102 in	2.6 mm	UL94 V-0	Copper	5.5 A	Tin	160 V
Amphenol Anytek KE063250A000G	3.81 mm	0.15 in	-40 °C	115 °C	Green	2	3	Header Male Pins Shrouded (4 Side)	Solder			Through Hole	Thermoplastic	6	Mating Flange	Vertical	0.102 in	2.6 mm	UL94 V-0	Copper	5.5 A	Tin	300 V	13.6 mm	0.535 in
Amphenol Anytek KE063251A000G	3.81 mm	0.15 in	-40 °C	115 °C	Green	2	3	Header Male Pins Shrouded (4 Side)	Solder			Through Hole	Thermoplastic	6	Mating Flange	90° Right Angle	0.102 in	2.6 mm	UL94 V-0	Copper	5.5 A	Tin	300 V	15.19 mm	0.598 "
Amphenol Anytek KE0674520000G	5 mm	0.197 in	-40 °C	115 °C	Green	2	3	Header Male Pins Shrouded (2 Side)	Solder			Through Hole	Thermoplastic	6		Vertical	0.102 in	2.6 mm	UL94 V-0	Copper	12 A	Tin	300 V	17.6 mm	0.693 in
Amphenol Anytek KE0651530000G	5.08 mm	0.2 in	-40 °C	115 °C	Green	2	3	Header Male Pins Shrouded (4 Side)	Solder			Through Hole	Thermoplastic	6		90° Right Angle	0.102 in	2.6 mm	UL94 V-0	Copper	12 A	Tin	300 V	20.09 mm	0.791 in
Amphenol Anytek KE061351A000G	3.5 mm	0.138 in	-40 °C	115 °C	Green	2	3	Header Male Pins Shrouded (4 Side)	Solder			Through Hole	Thermoplastic	6	Locking Ramp	90° Right Angle	0.102 in	2.6 mm	UL94 V-0	Copper	5.5 A	Tin	160 V	15.19 mm	0.598 "
Amphenol Anytek KE063151A000G	3.81 mm	0.15 in	-40 °C	115 °C	Green	2	3	Header Male Pins Shrouded (4 Side)	Solder			Through Hole	Thermoplastic	6		90° Right Angle	0.102 in	2.6 mm	UL94 V-0	Copper	5.5 A	Tin	300 V	15.19 mm	0.598 "
Amphenol Anytek KE061151A000G	3.5 mm	0.138 in	-40 °C	115 °C	Green	2	3	Header Male Pins Shrouded (4 Side)	Solder			Through Hole	Thermoplastic	6		90° Right Angle	0.102 in	2.6 mm	UL94 V-0	Copper	5.5 A	Tin	160 V	15.19 mm	0.598 "
Amphenol Anytek KE0671520000G	5 mm	0.197 in	-40 °C	115 °C	Green	2	3	Header Male Pins Shrouded (4 Side)	Solder			Through Hole	Thermoplastic	6		Vertical	0.102 in	2.6 mm	UL94 V-0	Copper	12 A	Tin	300 V	17.6 mm	0.693 in
Amphenol Anytek KE061251A000G	3.5 mm	0.138 in	-40 °C	115 °C	Green	2	3	Header Male Pins Shrouded (4 Side)	Solder			Through Hole	Thermoplastic	6	Mating Flange	90° Right Angle	0.102 in	2.6 mm	UL94 V-0	Copper	5.5 A	Tin	160 V	15.19 mm	0.598 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.89
		10	$ 0.66
		25	$ 0.57
		50	$ 0.52
		100	$ 0.47
		250	$ 0.41
		500	$ 0.38
		2000	$ 0.33
		6000	$ 0.31

Description

General part information

KE06 Series

6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
