R75TI21004030J

Active

KEMET

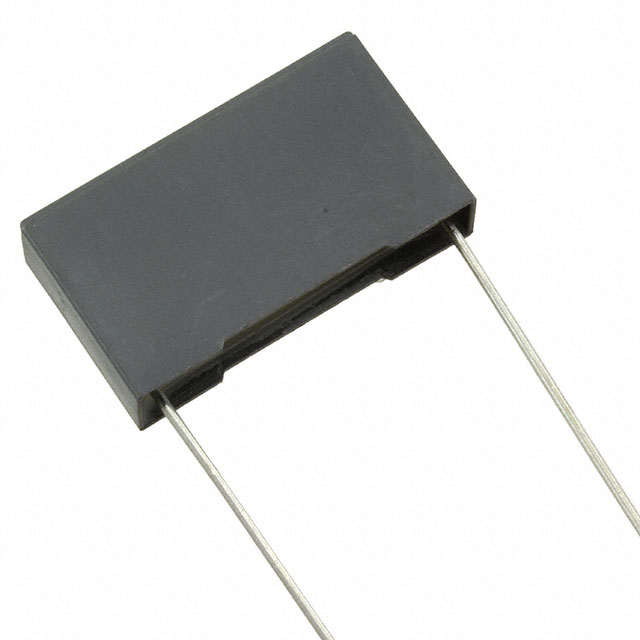

FILM CAPACITOR, AEC-Q200 R75 SERIES, 0.01 F, 5%, PP (POLYPROPYLENE), 1.6 KV ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Technical Data Sheet EN +4

R75TI21004030J

Active

KEMET

FILM CAPACITOR, AEC-Q200 R75 SERIES, 0.01 F, 5%, PP (POLYPROPYLENE), 1.6 KV ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Technical Data Sheet EN +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R75TI21004030J

Applications	Automotive, High Frequency, Switching, High Pulse, DV/DT
Capacitance	10000 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	12.1 mm
Height - Seated (Max) [Max] [z]	0.476 "
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	650 V
Voltage Rating - DC	1600 V
Voltage Rating - DC	1.6 kV

R75TI Series

Part	Package / Case	Voltage Rating - AC	Ratings	ESR (Equivalent Series Resistance)	Voltage Rating - DC	Voltage Rating - DC	Lead Spacing	Lead Spacing	Applications	Dielectric Material	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]
KEMET R75TI182050H3J	Radial	650 V	AEC-Q200	97 mOhm	1600 V	1.6 kV	15 mm	0.591 in	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	5 %	-55 °C	125 °C	Through Hole	PC Pins	0.709 in	0.236 in	18 mm	6 mm	12.1 mm	0.476 "
KEMET R75TI14704030J	Radial	650 V	AEC-Q200		1600 V	1.6 kV	15 mm	0.591 in	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	5 %	-55 °C	105 ░C	Through Hole	PC Pins	0.709 in	0.157 in	18 mm	4 mm			4700 pF
KEMET R75TI1560AA30J	Radial	650 V	AEC-Q200		1600 V	1.6 kV	15 mm	0.591 in	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	5 %	-55 °C	105 ░C	Through Hole	PC Pins	0.709 in	0.197 "	18 mm	5 mm			5600 pF	0.437 in	11.1 mm
KEMET R75TI227050H3J	Radial	650 V	AEC-Q200	29.5 mOhms	1600 V	1.6 kV	15 mm	0.591 in	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	5 %	-55 °C	125 °C	Through Hole	PC Pins	0.709 in	0.394 in	18 mm				0.027 µF	0.634 in	16.1 mm	10 mm
KEMET R75TI218050H3J	Radial	650 V	AEC-Q200	44.2 mOhms	1600 V	1.6 kV	15 mm	0.591 in	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	5 %	-55 °C	125 °C	Through Hole	PC Pins	0.709 in	0.335 in	18 mm	8.5 mm			0.018 µF	0.575 in	14.6 mm
KEMET R75TI139050H3J	Radial	650 V	AEC-Q200	204 mOhms	1600 V	1.6 kV	15 mm	0.591 in	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	5 %	-55 °C	125 °C	Through Hole	PC Pins	0.709 in	0.157 in	18 mm	4 mm			3900 pF
KEMET R75TI156050H3J	Radial	650 V	AEC-Q200	142.1 mOhms	1600 V	1.6 kV	15 mm	0.591 in	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	5 %	-55 °C	125 °C	Through Hole	PC Pins	0.709 in	0.197 "	18 mm	5 mm			5600 pF	0.437 in	11.1 mm
KEMET R75TI1470AA00J	Radial	650 V	AEC-Q200		1600 V	1.6 kV	10 mm	0.394 in	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	5 %	-55 °C	105 ░C	Through Hole	PC Pins	0.512 in	0.157 in	13 mm	4 mm			4700 pF
KEMET R75TI210050H3J	Radial	650 V	AEC-Q200	79.6 mOhms	1600 V	1.6 kV	15 mm	0.591 in	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	5 %	-55 °C	125 °C	Through Hole	PC Pins	0.709 in	0.236 in	18 mm	6 mm	12.1 mm	0.476 "	10000 pF
KEMET R75TI21004030J	Radial	650 V	AEC-Q200		1600 V	1.6 kV	15 mm	0.591 in	Automotive High Frequency Switching High Pulse DV/DT	Metallized Polypropylene (PP)	5 %	-55 °C	105 ░C	Through Hole	PC Pins	0.709 in	0.236 in	18 mm	6 mm	12.1 mm	0.476 "	10000 pF
