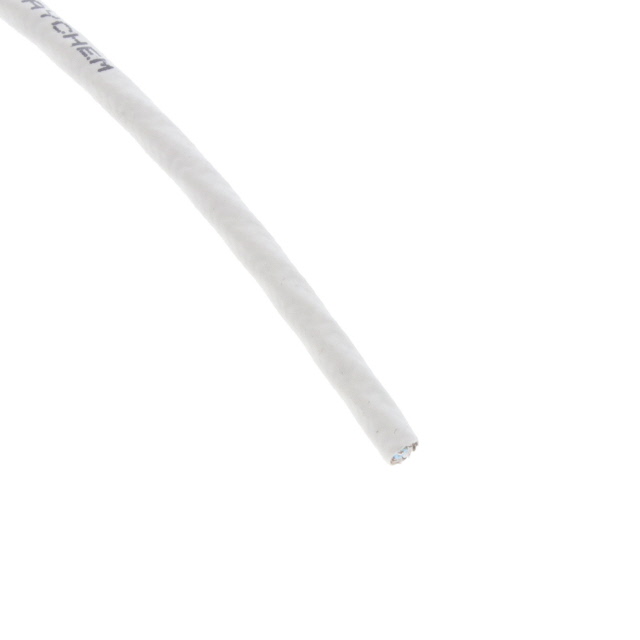

10612-24-9
UnknownTE Connectivity Aerospace, Defense and Marine
10612-24-9 500'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10612-24-9
UnknownTE Connectivity Aerospace, Defense and Marine
10612-24-9 500'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10612-24-9 |
|---|---|
| Cable Type | Twinaxial |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand [custom] | 36 AWG |
| Conductor Strand [custom] | 19 Strands |
| Dielectric Diameter [diameter] | 0.048 in |
| Dielectric Diameter [diameter] | 1.22 mm |
| Dielectric Material | Ethylene Tetrafluoroethylene (ETFE) |
| Impedance | 77 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.129 in |
| Jacket (Insulation) Diameter [diameter] | 3.28 mm |
| Jacket (Insulation) Material | Ethylene Tetrafluoroethylene (ETFE) |
| Length | 25 ft, 6000 in |
| Length | 7.62 m, 152.4 m |
| Length [x] | 1 ft, 100 ft |
| Length [x] | 300 mm, 30.48 m |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 0.10 | |
| 1 | $ 30.66 | |||
| 1 | $ 7.13 | |||
| 2 | $ 0.05 | |||
| 3 | $ 6.57 | |||
| 3 | $ 0.03 | |||
| 3 | $ 28.40 | |||
| 5 | $ 27.43 | |||
| 5 | $ 0.02 | |||
| 5 | $ 6.33 | |||
| 7 | $ 26.79 | |||
| 7 | $ 6.20 | |||
| 10 | $ 26.14 | |||
| 10 | $ 6.04 | |||
| 25 | $ 24.53 | |||
Description
General part information
10612 Series
Twinaxial Cable 24 AWG 500.0' (152.40m) 77 Ohms
