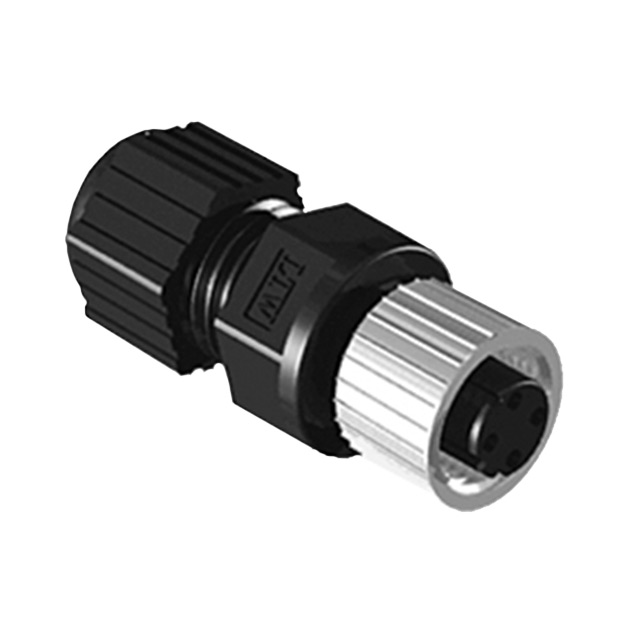

12D-04BFFA-SL8001

Obsolete

Amphenol LTW

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Obsolete

Amphenol LTW

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	12D-04BFFA-SL8001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Unshielded

Part	Shell Finish	Contact Material	Color	Shell Material	Current Rating (Amps)	Insert Material	Primary Material	Mounting Type	Connector Type	Shielding	Ingress Protection	Number of Positions	Features	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Contact Finish - Mating	Shell Size - Insert	Orientation
Amphenol LTW 12D-04BFFA-SL8001	Nickel	Copper Alloy	Black Silver	Zinc Alloy	4 A	Polyamide (PA) Nylon Glass Filled	Metal	Free Hanging (In-Line)	Receptacle Female Sockets	Unshielded	IP68 - Dust Tight Waterproof	4	Backshell Coupling Nut	-40 °C	105 ░C	Nylon Polyamide (PA)	Gold	M12-4	D

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

No documents available
