895-030-555-204
ActiveEDAC Inc.

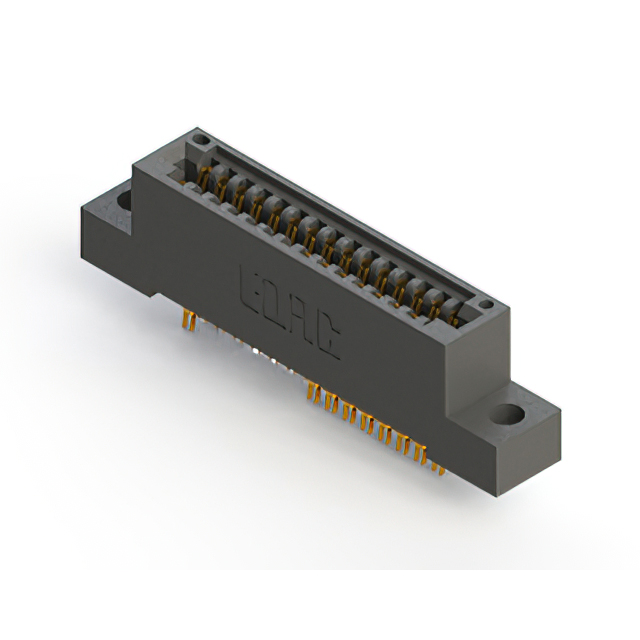

CONN EDGE DUAL FMALE 30POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-030-555-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 30POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-030-555-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
895-030 Series
...
| Part | Flange Feature | Contact Material | Contact Finish | Number of Positions | Termination | Termination Rows | Number of Positions/Bay/Row [custom] | Material - Insulation | Mounting Type | Gender | Card Type | Contact Type | Read Out | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Color | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Gold | 30 | Wire Wrap | 1 | 30 | Polyphenylene Sulfide (PPS) | Through Hole | Female | Non Specified - Single Edge | Cantilever | Single | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | |||||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Gold | 30 | Solder | 2 | 15 | Polyphenylene Sulfide (PPS) | Through Hole Right Angle | Female | Non Specified - Dual Edge | Cantilever | Dual | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | |||||
EDAC Inc. | Copper Alloy | Gold | 30 | Solder | 2 | 15 | Polyphenylene Sulfide (PPS) | Through Hole | Female | Non Specified - Dual Edge | Cantilever | Dual | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Gold | 30 | Solder | 1 | 30 | Polyphenylene Sulfide (PPS) | Through Hole Right Angle | Female | Non Specified - Single Edge | Cantilever | Single | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | |||||
EDAC Inc. | Side Mount Opening Unthreaded | Copper Alloy | Gold | 30 | Wire Wrap | 1 | 30 | Polyphenylene Sulfide (PPS) | Through Hole | Female | Non Specified - Single Edge | Cantilever | Single | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||
EDAC Inc. | Top Mount Opening Unthreaded | Copper Alloy | Gold | 30 | Solder | 2 | 15 | Polyphenylene Sulfide (PPS) | Board Edge Straddle Mount | Female | Non Specified - Dual Edge | Cantilever | Dual | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | Card Extender | ||
EDAC Inc. | Top Mount Opening Unthreaded | Copper Alloy | Gold | 30 | Solder | 1 | 30 | Polyphenylene Sulfide (PPS) | Through Hole Right Angle | Female | Non Specified - Single Edge | Cantilever | Single | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | |||
EDAC Inc. | Flush Mount Top Opening Unthreaded | Copper Alloy | Gold | 30 | Solder | 2 | 15 | Polyphenylene Sulfide (PPS) | Board Edge Straddle Mount | Female | Non Specified - Dual Edge | Cantilever | Dual | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | Card Extender | ||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Copper Alloy | Gold | 30 | Wire Wrap | 1 | 30 | Polyphenylene Sulfide (PPS) | Through Hole | Female | Non Specified - Single Edge | Cantilever | Single | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | |||||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Copper Alloy | Gold | 30 | Wire Wrap | 2 | 15 | Polyphenylene Sulfide (PPS) | Through Hole | Female | Non Specified - Dual Edge | Cantilever | Dual | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 51.55 | |
Description
General part information
895-030 Series
30 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
