130E405032PE

Active

METZ CONNECT USA Inc.

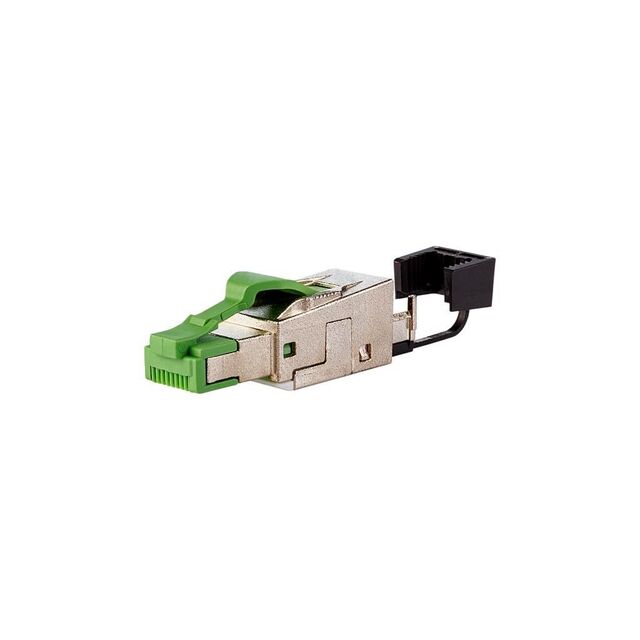

CAT 5 RJ45 FIELD PLUG PRO 2P

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

CAT 5 RJ45 FIELD PLUG PRO 2P

Technical Specifications

Parameters and characteristics for this part

Specification	130E405032PE

Cable Type	Round Cable, Solid, Stranded Wires
Color	Green
Connector Type	Plug
Contact Finish	Gold
Contact Material	Tin Bronze
Current Rating (Amps)	1 A
Features	Strain Relief, Locking Hook, Housing
Housing Material	Zinc Die Cast
Length [x]	1.961 in
Length [x]	49.8 mm
Number of Positions/Contacts [custom]	4
Number of Positions/Contacts [custom]	8
Ratings	Cat5
Shielding	Shielded
Termination	IDC
Voltage Rating	50 V
Wire Gauge [Max]	27 AWG
Wire Gauge [Min]	22 AWG

Part	Cable Type	Housing Material	Connector Type	Contact Material	Current Rating (Amps)	Contact Finish	Length [x]	Length [x]	Shielding	Termination	Color	Voltage Rating	Features	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Ratings
METZ CONNECT USA Inc. 130E405032PE	Round Cable Solid Stranded Wires	Zinc Die Cast	Plug	Tin Bronze	1 A	Gold	1.961 in	49.8 mm	Shielded	IDC	Green	50 V	Housing Locking Hook Strain Relief	22 AWG	27 AWG	4	8	Cat5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 17.51

General part information

Plug Modular Connector 8p4c (RJ45, Ethernet) Position Shielded Cat5 IDC
