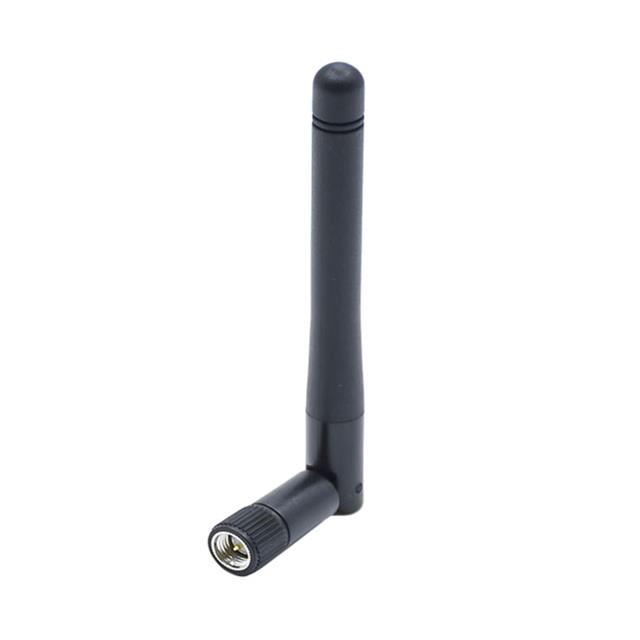

RST-MA11-109010-22M-GE-001
ActiveRaltron Electronics
RF ANT 868MHZ ISM BAND 115MM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RST-MA11-109010-22M-GE-001
ActiveRaltron Electronics
RF ANT 868MHZ ISM BAND 115MM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RST-MA11-109010-22M-GE-001 |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | ISM |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range | 868 MHz |
| Gain [Max] | 3 dBic |
| Gain [Min] | 2 dBi |
| Height (Max) [Max] | 109 mm |
| Height (Max) [Max] | 4.291 in |
| Ingress Protection | IP65 |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.37 | |
| 10 | $ 3.03 | |||
| 50 | $ 2.86 | |||
| 100 | $ 2.48 | |||
| 250 | $ 2.35 | |||
| 500 | $ 2.11 | |||
| 1000 | $ 1.78 | |||
| 2500 | $ 1.69 | |||
| 5000 | $ 1.63 | |||
Description
General part information
RST-MA11 Series
868MHz ISM Whip, Tilt RF Antenna 868MHz 2dBi ~ 3dBi SMA Male Connector Mount
