FM4-NDRP-PCB-1

Active

Amphenol RF

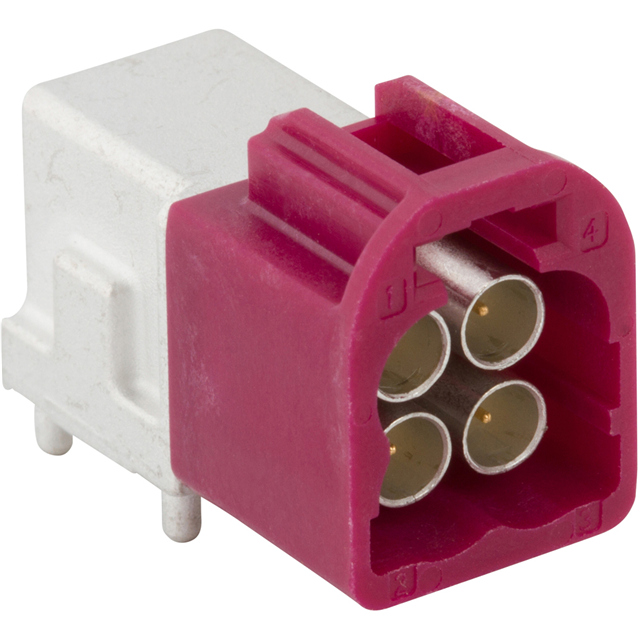

CONNECTOR: MINI FAKRA; SOCKET; MALE; ANGLED 90°; ON PCBS; THT; 50Ω

Search across all available documentation for this part.

Active

Amphenol RF

CONNECTOR: MINI FAKRA; SOCKET; MALE; ANGLED 90°; ON PCBS; THT; 50Ω

Technical Specifications

Parameters and characteristics for this part

Specification	FM4-NDRP-PCB-1

Body Finish	Tin
Body Material	Zinc Alloy, Brass
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	Quadraxial, Miniature Coaxial, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Latch Lock
Features	Code D
Frequency - Max [Max]	9 GHz
Housing Color	Claret, Violet
Impedance	50 Ohms
Mating Cycles	25
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

Part	Dielectric Material	Mounting Type	Center Contact Plating	Body Finish	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Features	Shield Termination	Connector Style	Frequency - Max [Max]	Body Material	Fastening Type	Connector Type	Housing Color	Center Contact Material	Mating Cycles	Number of Ports
Amphenol RF FM4-NDRP-PCB-1	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	Gold	Tin	50 Ohms	-40 °C	105 ░C	Solder	Code D	Solder	Fakra Miniature Coaxial Quadraxial	9 GHz	Brass Zinc Alloy	Latch Lock	Male Pin Plug	Claret Violet	Copper Alloy	25	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Miniature Coaxial, Fakra, Quadraxial Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
