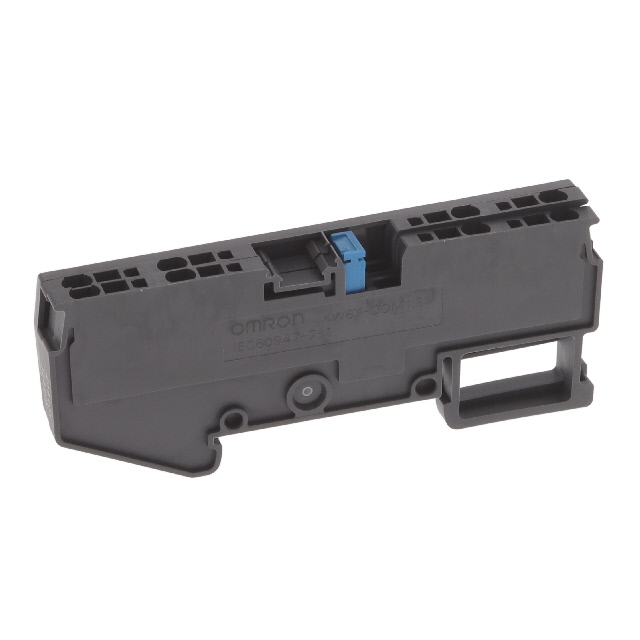

XW6T-COM1.5X8BL

Active

Omron Electronics Inc-EMC Div

COM TERM BLK 1_5MM 8PN BLUE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XW6T-COM1.5X8BL

Active

Omron Electronics Inc-EMC Div

COM TERM BLK 1_5MM 8PN BLUE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XW6T-COM1.5X8BL

Current - IEC	17.5 A
Height (Max) [Max]	1.232 in
Height (Max) [Max]	31.3 mm
Length [x]	78 mm
Length [x]	3.071 in
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	DIN Rail
Number of Levels	1
Number of Positions	8
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Terminal - Width [y]	9.2 mm
Termination Style	Push In, Spring
Type	Middle
Voltage - IEC	500 V
Wire Gauge or Range - mm²	1.5 mm²

XW6T-CO Series

Part	Material - Insulation	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Features	Current - UL	Terminal - Width [y]	Number of Levels	Current - IEC	Stripping Length	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Housing Color	Material Flammability Rating	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Type	Length [x]	Length	Voltage - IEC	Number of Positions	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm²
Omron Electronics Inc-EMC Div XW6T-COM2.5X12BL	Nylon Polyamide (PA)	0.14 mm²	4 mm²	Block of 3 Indicators	20 A	17.8 mm	1	24 A	10 mm	26 AWG	14 AWG	Push In Spring	Blue	UL94 V-0	36.1 mm	1.421 "	DIN Rail	Middle	3.252 in	82.6 mm	800 V	12
Omron Electronics Inc-EMC Div XW6T-COM2.5X8RD	Nylon Polyamide (PA)	0.14 mm²	4 mm²	Indicators	20 A	12.6 mm	2	24 A	10 mm	26 AWG	14 AWG	Push In Spring	Red	UL94 V-0	36.1 mm	1.421 "	DIN Rail	Middle	3.252 in	82.6 mm	800 V	8
Omron Electronics Inc-EMC Div XW6T-COM2.5X20YL	Nylon Polyamide (PA)	0.14 mm²	4 mm²		20 A		1	24 A	10 mm	26 AWG	14 AWG	Push In Spring	Yellow	UL94 V-0	36.1 mm	1.421 "	DIN Rail	Middle	3.252 in	82.6 mm	800 V	20
Omron Electronics Inc-EMC Div XW6T-COM1.5X8BL	Nylon Polyamide (PA)					9.2 mm	1	17.5 A				Push In Spring		UL94 V-0	31.3 mm	1.232 in	DIN Rail	Middle	3.071 in		500 V	8	78 mm	-40 °C	55 °C	1.5 mm²
Omron Electronics Inc-EMC Div XW6T-COM1.5X20YL	Nylon Polyamide (PA)	0.14 mm²	1.5 mm²		5 A	19.7 mm	1	17.5 A	8 mm	26 AWG	14 AWG	Push In Spring	Yellow	UL94 V-0	31.3 mm	1.232 in	DIN Rail	Middle	3.071 in		500 V	20	78 mm
Omron Electronics Inc-EMC Div XW6T-COM1.5X8YL	Nylon Polyamide (PA)	0.14 mm²	1.5 mm²	Indicators	5 A	9.2 mm	2	17.5 A	8 mm	26 AWG	14 AWG	Push In Spring	Yellow	UL94 V-0	31.3 mm	1.232 in	DIN Rail	Middle	3.071 in		500 V	8	78 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.32
		10	$ 12.35
		25	$ 10.99
		50	$ 10.18
		100	$ 9.53
		250	$ 8.88
		500	$ 8.50
		1000	$ 8.21

Description

General part information

XW6T-CO Series

8 Position Terminal Block Middle 9.2mm
