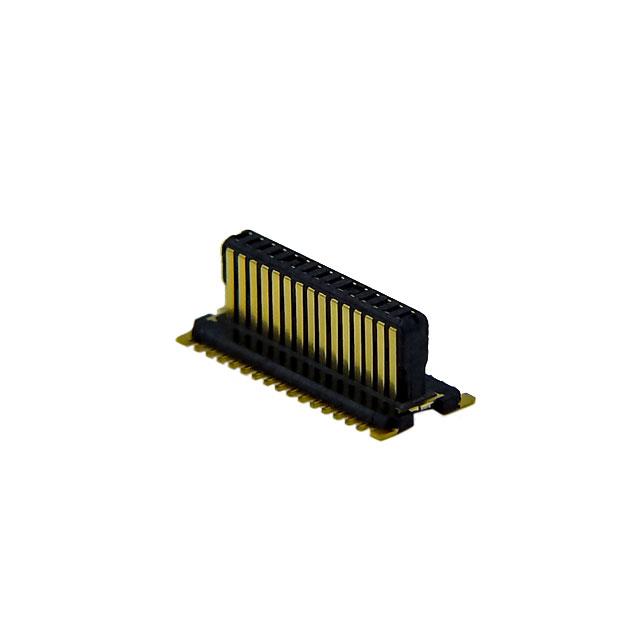

IMSA-11007S-30A-GFN4
ActiveIRISO USA Inc.
CONN SOCKET VERT B-TO-B FLOATING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMSA-11007S-30A-GFN4
ActiveIRISO USA Inc.
CONN SOCKET VERT B-TO-B FLOATING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMSA-11007S-30A-GFN4 |
|---|---|
| Connector Type | Socket, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.098 in |
| Height Above Board | 2.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.00 | |
| 10 | $ 1.75 | |||
| 25 | $ 1.67 | |||
| 50 | $ 1.63 | |||
| 100 | $ 1.56 | |||
| 250 | $ 1.41 | |||
| 500 | $ 1.30 | |||
| Tape & Reel (TR) | 1800 | $ 1.08 | ||
| 3600 | $ 1.04 | |||
| 5400 | $ 0.99 | |||
| 9000 | $ 0.97 | |||
Description
General part information
IMSA-110 Series
30 Position Connector Socket, Center Strip Contacts Surface Mount Gold
