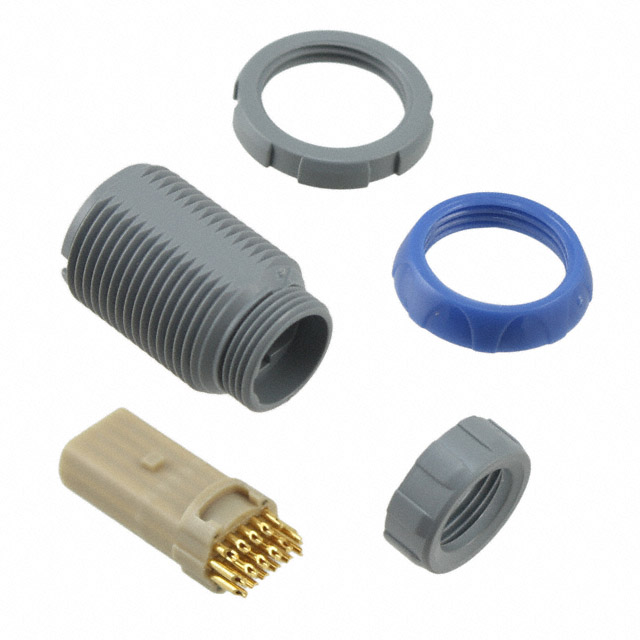

XKN.M22.GLLG

Obsolete

LEMO

CONN RCPT FMALE 22P SOLDER CUP

Search across all available documentation for this part.

Obsolete

LEMO

CONN RCPT FMALE 22P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	XKN.M22.GLLG

Applications	Testing Equipment, Medical, Industrial, Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut
Number of Positions	22 positions
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-50 °C
Orientation	N
Primary Material	Plastic
Shell Material	Sulfone
Shell Size - Insert	M22
Shielding	Unshielded

Part	Applications	Number of Positions	Fastening Type	Contact Finish - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Orientation	Shell Size - Insert	Mounting Feature	Insert Material	Primary Material	Connector Type	Ingress Protection	Color	Shielding	Termination
LEMO XKN.M22.GLLA	Industrial Measurement Medical Testing Equipment	22 positions	Push-Pull	Gold	2 A	-50 °C	170 °C	Sulfone	N	M22	Front and Rear Side Nut	Polyetheretherketone (PEEK)	Plastic	Receptacle Female Sockets	IP50	Blue Gray	Unshielded
LEMO XKN.M22.GLMG	Industrial Measurement Medical Testing Equipment	22 positions	Push-Pull	Gold	1.2 A	-50 °C	170 °C	Sulfone	N	M22	Front and Rear Side Nut	Polyetheretherketone (PEEK)	Plastic	Receptacle Female Sockets	IP50	Gray	Unshielded	Crimp
LEMO XKN.M22.GLLG	Industrial Measurement Medical Testing Equipment	22 positions	Push-Pull	Gold	2 A	-50 °C	170 °C	Sulfone	N	M22	Front and Rear Side Nut	Polyetheretherketone (PEEK)	Plastic	Receptacle Female Sockets	IP50	Gray	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 Position Circular Connector Receptacle, Female Sockets Solder Cup
